(1.93.6/03) - REAR VIEW MIRROR - L/CAB (VAR.330878)

Запчасти Case IH FARMALL 95U (1.93.6/03) - REAR VIEW MIRROR - L/CAB (VAR.330878) (10) - OPERATORS PLATFORM/CAB

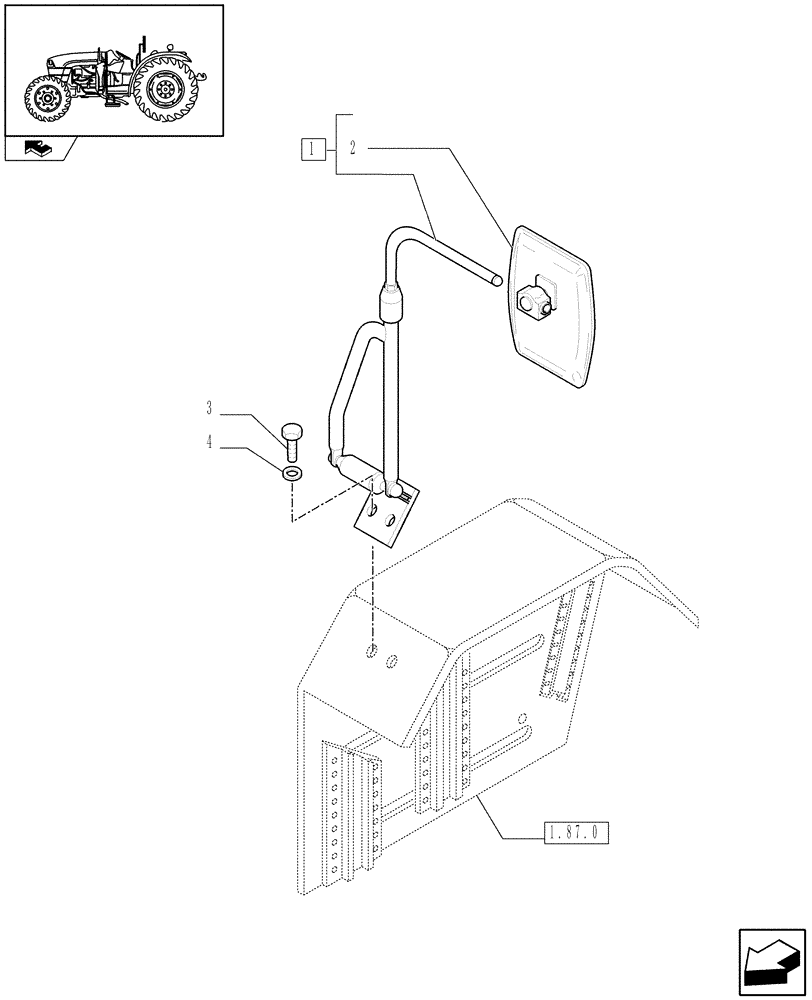

Схема запчастей Case IH FARMALL 95U - (1.93.6/03) - REAR VIEW MIRROR - L/CAB (VAR.330878) (10) - OPERATORS PLATFORM/CAB
1
2
1.87.0
4
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47129077

REAR VIEW MIRROR

1шт.

2

5194648

SUPPORT

1шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

12647124

WASHER,8.15mm ID x 20mm OD x 3mm Thk

8 x 20 x 3

2шт.
