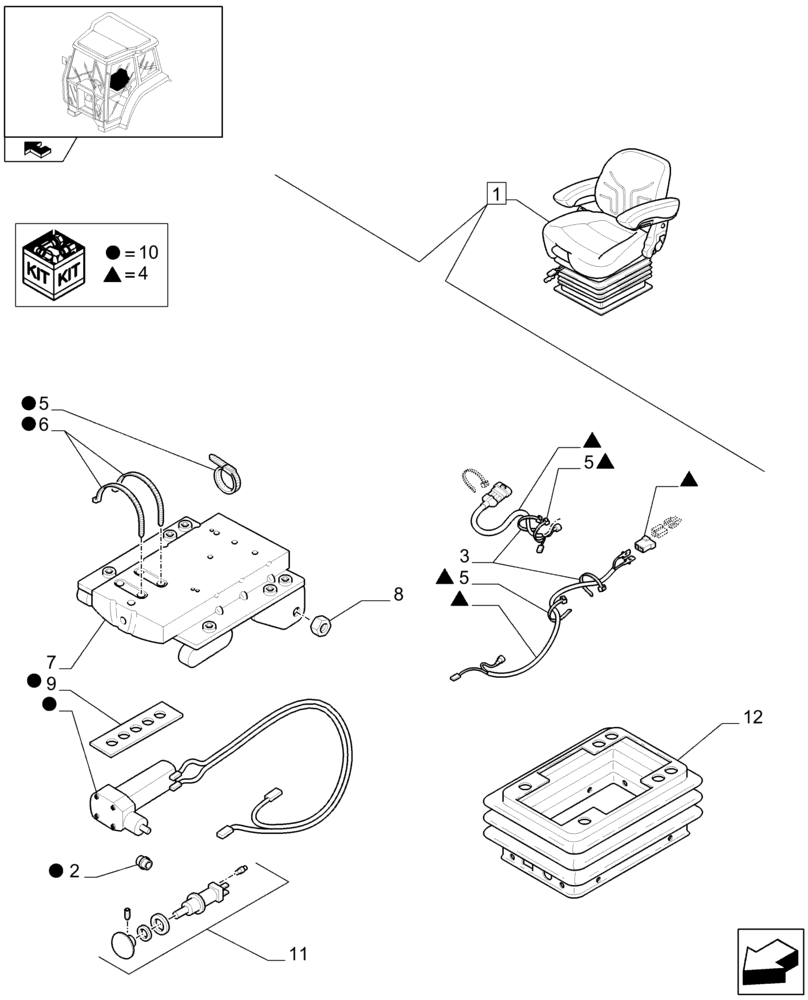

Запчасти Case IH FARMALL 95U (1.93.3/02A[04]) - SWIVEL FABRIC SEAT WITH AIR SUSPENSION, SWITCH AND ARMREST - BREAKDOWN - C7342 (10) - OPERATORS PLATFORM/CAB

1

84164865

DRIVER SEAT

ASSY

1шт.

2

87331945

FERRULE

1шт.

3

82035055

CABLE TIE,M4.7 x 204

CABLE STRAP

1шт.

4

9971521

KIT

Incl. 5

1шт.

5

87567529

CABLE TIE,200mm L

CABLE STRAP

1шт.

6

84171410

WIRE CLAMP

2шт.

7

9971516

MOUNTING PLATE

Incl. 5, 6, 8

1шт.

8

82034883

NUT,CL 8.8

M8

2шт.

9

84171558

PLATE

1шт.

10

87331939

AIR COMPRESSOR KIT

1шт.

11

87705191

KIT

1шт.

12

82035104

BELLOWS

1шт.
