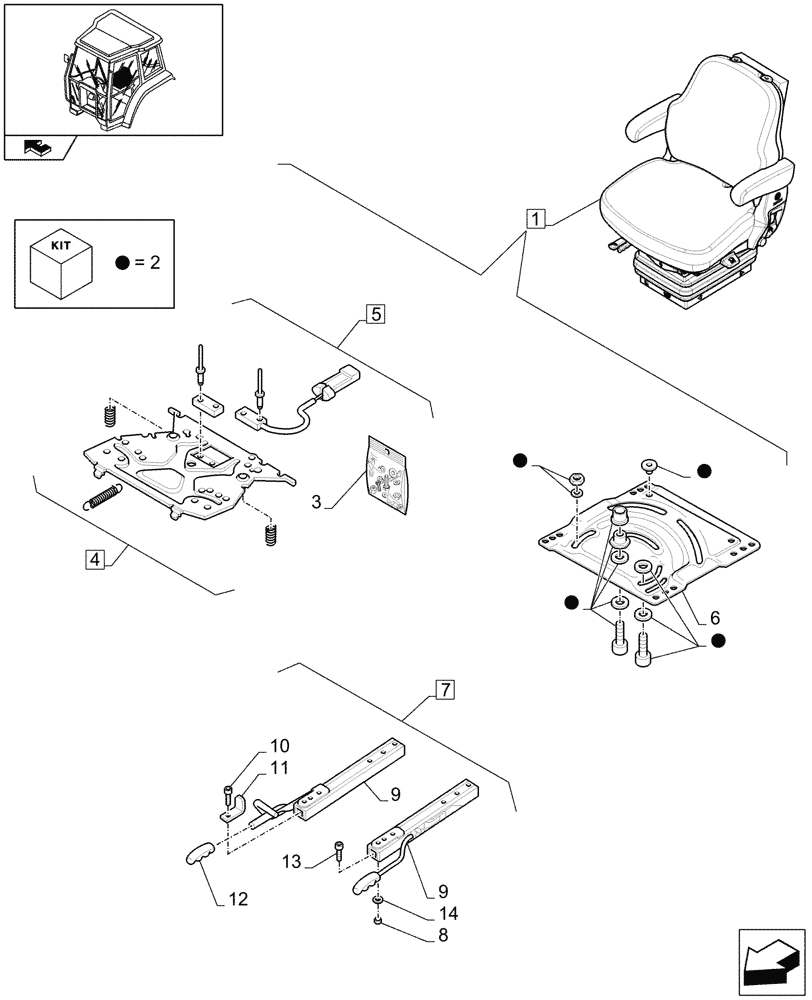

Запчасти Case IH FARMALL 95U (1.93.3/01E[03]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, SWITCH AND ARMREST - BREAKDOWN - D7342 (10) - OPERATORS PLATFORM/CAB

1

47476149

DRIVER SEAT

1шт.

2

1-34-751-712

SET OF PARTS

1шт.

3

84191201

SET OF PARTS

SMALL PARTS SEAT SWITCH

1шт.

4

84253109

COMPENSATOR

ASSY, Incl 3

1шт.

5

84180174

SWITCH

ASSY, Incl 3

1шт.

6

84247568

REPAIR KIT

ASSY, Incl 2

1шт.

7

47124778

KIT

ASSY, Incl 8 - 14

1шт.

8

82034880

NUT,M8

4шт.

9

NSS

NOT SOLD SEPARAT

ADJUSTMENT, Incl in 7

2шт.

10

NSS

NOT SOLD SEPARAT

SCREW, Incl in 7

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE, Incl in 7

1шт.

12

NSS

NOT SOLD SEPARAT

HANDLE, Incl in 7

1шт.

13

82034894

SCREW,M8 x 1.25 x 1.25mm

4шт.

14

9960692

WASHER

4шт.
