Запчасти Case IH FARMALL 95U (1.93.3/01A[01]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, SWITCH AND ARMREST - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

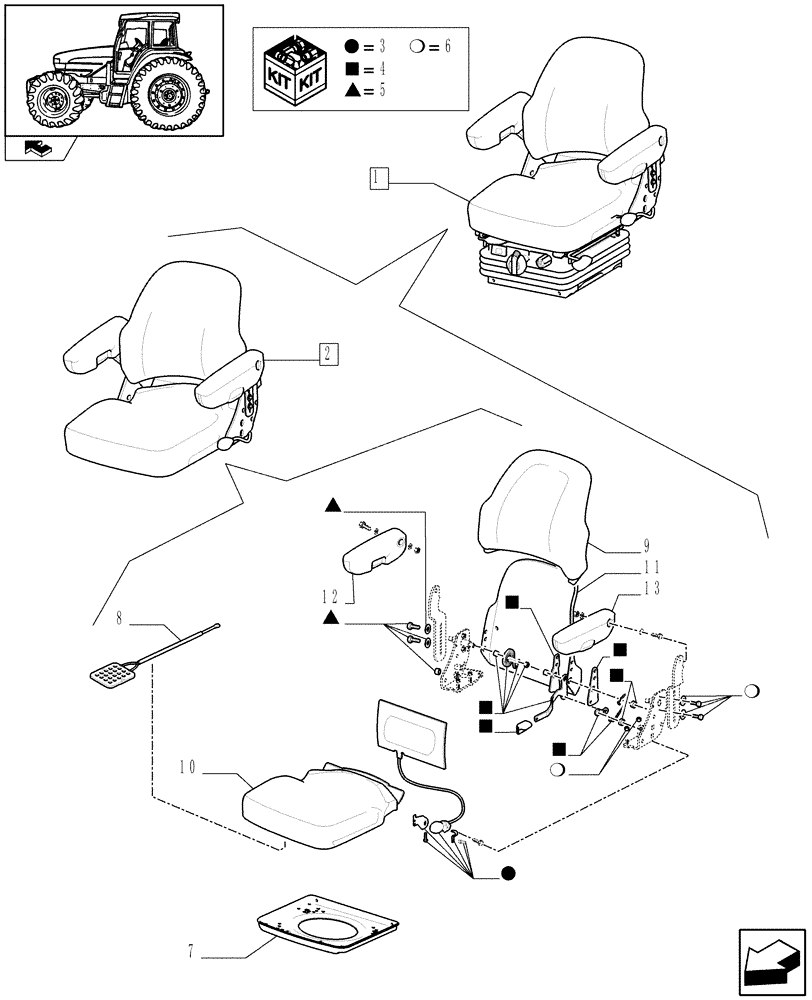

Схема запчастей Case IH FARMALL 95U - (1.93.3/01A[01]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, SWITCH AND ARMREST - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
3
4
8
6
home
4
11
4
4
4
7
13
1
3
2
4
4
5
5
9
6
3
12
10
5
5
6
4
6

Артикул

Название

Примечание

Количество

1

47131668

DRIVER SEAT

ASSY

1шт.

2

87302286

DRIVER SEAT

ASSY, Wheat Vinyl

1шт.

3

82030802

SERVICE KIT

Lumbar

1шт.

4

82030808

KIT

Harness

1шт.

5

47127919

SERVICE KIT

RH Bracket

1шт.

6

47127917

SERVICE KIT

LH Bracket

1шт.

7

82020803

SERVICE KIT

Seat Pan

1шт.

8

47127912

SERVICE KIT

OPS and Harness

1шт.

9

87302287

SEAT BACK

Wheat Vinyl

1шт.

10

87302288

SEAT CUSHION

Wheat Vinyl

1шт.

11

47127870

SERVICE KIT

Back Pan

1шт.

12

47127876

SERVICE KIT

RH Arm Rest

1шт.

13

47127914

SERVICE KIT

LH Arm Rest

1шт.

Выбрано товаров: 13
