Запчасти Case IH FARMALL 95U (1.93.3) - SEAT & PARTS (10) - OPERATORS PLATFORM/CAB

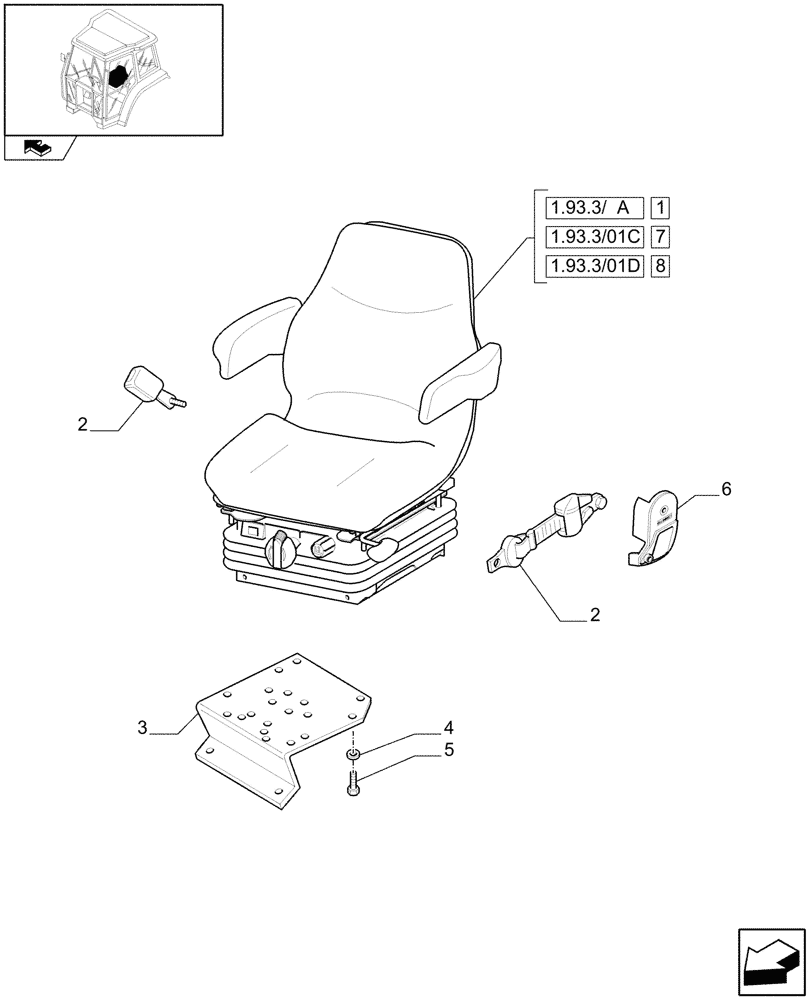

Схема запчастей Case IH FARMALL 95U - (1.93.3) - SEAT & PARTS (10) - OPERATORS PLATFORM/CAB
1.93.3/ a
3
8
4
2
7
home
2
6
5
1
1.93.3/01d
1.93.3/01c

Артикул

Название

Примечание

Количество

1

47125336

DRIVER SEAT

W/Cab, Serial Range: -C6342

1шт.

With Mechanical suspension only

1шт.

1

47131667

INSTRUCTIONAL SEAT

L/Cab

1шт.

With Mechanical suspension only

1шт.

1

84166907

DRIVER SEAT

W/Cab, In Alternative to 84264533, Start Serial: D6342

1шт.

With Mechanical suspension only

1шт.

2

82034981

SAFETY BELT ,50.8mm W x 1280mm L

1шт.

VAR.331706, Seat Belt for Air Suspension Seat

1шт.

3

87369162

BRACKET

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

5

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

6

5192699

COVER

LH

1шт.

6

5192700

COVER

RH

1шт.

7

84264533

DRIVER SEAT

W/Cab, In Alternative to 84166907, Serial Range: -C7342

1шт.

8

47476144

DRIVER SEAT

, Start Serial: D7342

1шт.

Выбрано товаров: 16
