Запчасти Case IH FARMALL 95U (1.91.1/03[01A]) - POWER SHUTTLE TRANSMISSION - ELECTRIC SYSTEM - D6499 (VAR.3331114-333114-331279-333279-331299-333299) (10) - OPERATORS PLATFORM/CAB

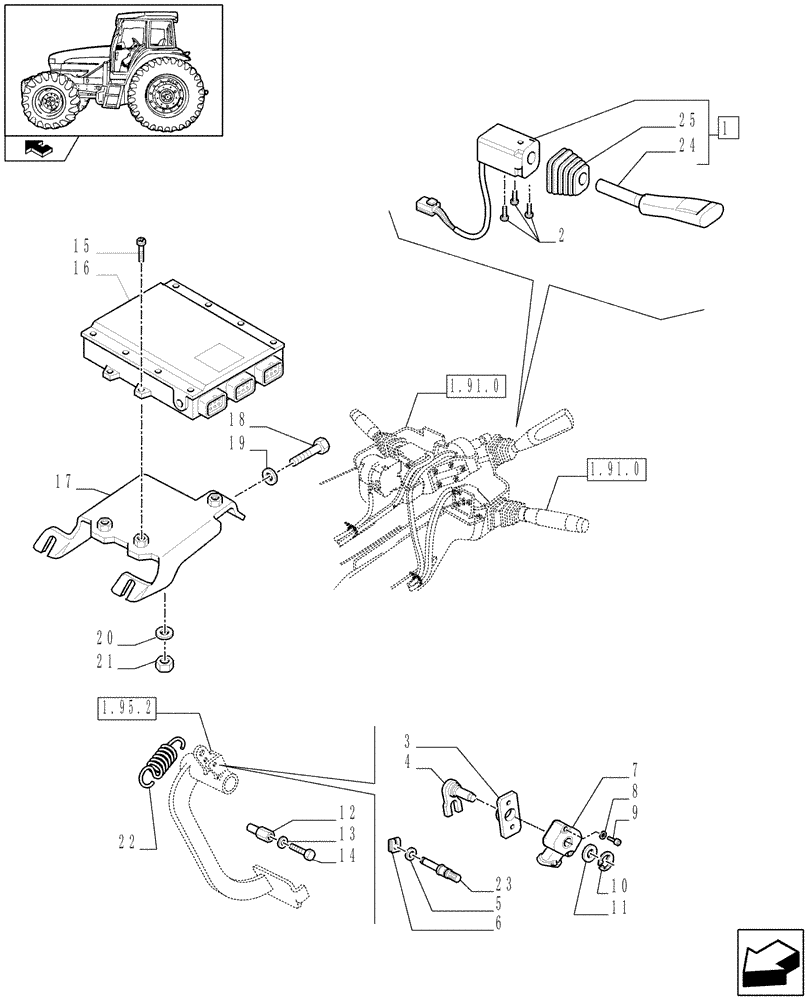

Схема запчастей Case IH FARMALL 95U - (1.91.1/03[01A]) - POWER SHUTTLE TRANSMISSION - ELECTRIC SYSTEM - D6499 (VAR.3331114-333114-331279-333279-331299-333299) (10) - OPERATORS PLATFORM/CAB
24
23
16
7
10
4
13
5
15
12
14
6
19
8
2
1.91.0
17
1.95.2
1.91.0
11
home
21
3
22
20
25
18
9
1

Артикул

Название

Примечание

Количество

1

84244150

CONTROL LEVER

Shuttle Lever

1шт.

2

14418921

BOLT,M4 x 8mm, Cl 8.8, Full Thd

M4x8, W/CAB

3шт.

3

81864090

RETAINER

1шт.

4

87303139

YOKE

1шт.

5

12647824

WASHER,6.15mm ID x 16mm OD x 3mm Thk

6.15x16x3

1шт.

6

11063976

CLIP

6x5x0.74

1шт.

7

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

For Clutch Pedal

1шт.

8

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

9

15210624

BOLT,Hex, M4 x 35mm, Cl 8.8, Full Thd

2шт.

9

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

L/CAB

2шт.

10

11087874

CIRCLIP,M6

1шт.

11

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

12

5186201

PIN,10mm OD x 30mm L

1шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

14

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

15

14304621

SCREW,M5 x 14mm, Cl 8.8, Full Thd

M5x14

3шт.

VAR.331114-331279-331299, Power Shuttle Trasmission for MDC

1шт.

15

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

3шт.

VAR.333114-333279-333299, Power Shuttle Trasmission for EDC

1шт.

16

84271028

ECU

, Serial Range: -C6920

1шт.

VAR.331114-331279-331299, Power Shuttle Trasmission for MDC

1шт.

16

84269798

ECU

, Serial Range: -C6920

1шт.

VAR.333114-333279-333299, Power Shuttle Trasmission for EDC

1шт.

16

84415602

ECU

, Start Serial: D6920

1шт.

VAR.331114-331279-331299, Power Shuttle Trasmission for MDC

1шт.

16

84415616

ECU

, Start Serial: D6920

1шт.

VAR.333114-333279-333299, Power Shuttle Trasmission for EDC

1шт.

17

87601872

BRACKET

1шт.

18

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

19

11193279

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD

1шт.

20

12646624

WASHER

6X15X1.5

2шт.

21

12574211

NUT,M6 x 1, Cl 8

M6

2шт.

22

5119832

SPRING,Cylindrical, 32mm OD x 88mm L

1шт.

23

87749703

PIN

1шт.

24

84324104

LEVER

1шт.

25

84324105

BOOT

1шт.

Выбрано товаров: 36
