Запчасти Case IH FARMALL 95U (1.91.1[01]) - ELECTRIC SYSTEM - PANEL & PARTS (10) - OPERATORS PLATFORM/CAB

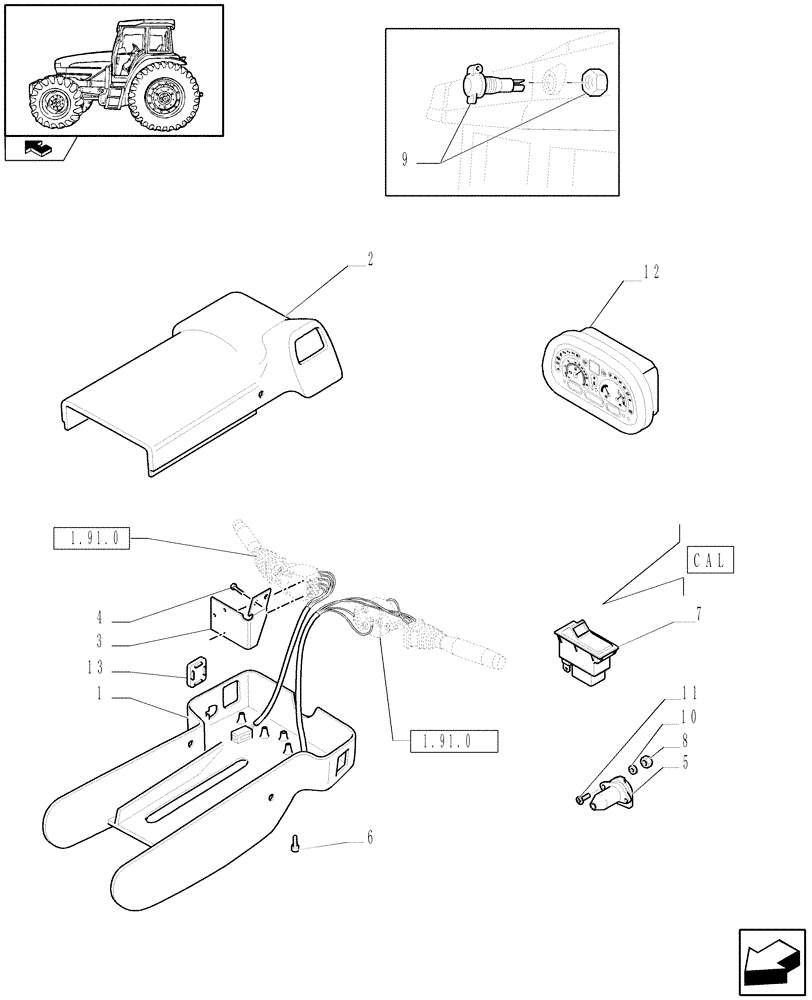

Схема запчастей Case IH FARMALL 95U - (1.91.1[01]) - ELECTRIC SYSTEM - PANEL & PARTS (10) - OPERATORS PLATFORM/CAB
10
7
6
1.91.0
1.91.0
12
8
9
home
4
2
11
cal
5
13
1
3

Артикул

Название

Примечание

Количество

1

87565867

COVER

Lower

1шт.

2

87565864

COVER

Upper

1шт.

3

87313462

BRACKET

1шт.

4

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

2шт.

5

5170243

POWER SOCKET,25A

25 AMP

1шт.

6

13312718

SCREW,Pozidriv Oval Csk Hd, M6 x 10mm, Cl 5.8

5шт.

7

47128678

TOGGLE SWITCH

Calibration, Function

1шт.

8

15896414

NUT,M5, Cl 8

2шт.

9

84191453

SOCKET,12/24V, 20A

W/CAB

2шт.

10

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

11

13274124

SCREW,Pozidriv Pan Hd, M5 x 14mm, Cl 8.8, Full Thd

to

2шт.

12

87671388

INSTRUMENT CLUSTER

1шт.

13

87559278

PLUG,1.5mm, Black

1шт.

JXU 75, JXU 85 / 85U, JXU 95 / 95U, JXU 105 / 105U

1шт.

Выбрано товаров: 14
