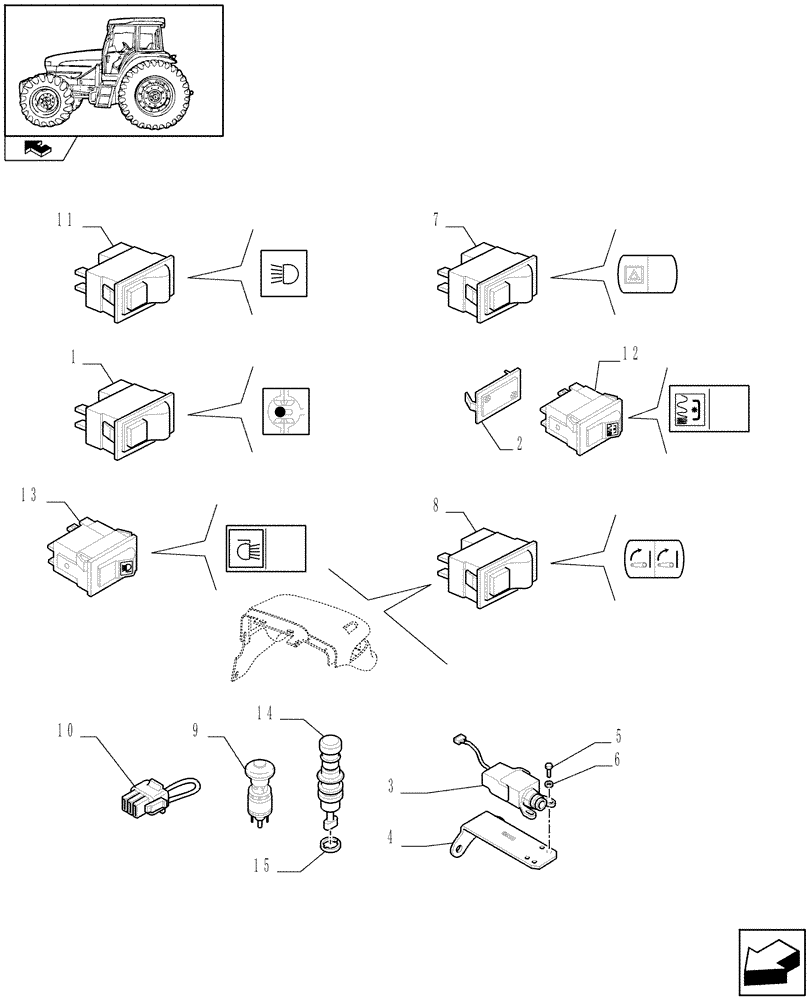

Запчасти Case IH FARMALL 95U (1.91.0[02]) - ELECTRIC SYSTEM - SWITCHES & CONTROLS (10) - OPERATORS PLATFORM/CAB

1

5186355

DIFF LOCK SWITCH

Diff. Lock, L/CAB

1шт.

VAR.331380-332380-335380-336380, Diff. Lock for 2WD Transmission

1шт.

1

5184399

DIFF LOCK SWITCH

Diff. Lock, W/CAB

1шт.

VAR.331380-332380-335380-336380, Diff. Lock for 2WD Transmission

1шт.

2

5166218

PLUG,Switch

1шт.

3

87302930

SWITCH

Diff. Lock

1шт.

VAR.339380-331380-332380-335380-336380-333380-334380-337380-338380 Rear Differential Lock

1шт.

4

5182316

BRACKET

1шт.

VAR.339380-331380-332380-335380-336380-333380-334380-337380-338380 Rear Differential Lock

1шт.

5

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

2шт.

VAR.339380-331380-332380-335380-336380-333380-334380-337380-338380 Rear Differential Lock

1шт.

5

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

LH

1шт.

Pneumatic Trailer Brakes; VAR.330335-331335

1шт.

6

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

VAR.339380-331380-332380-335380-336380-333380-334380-337380-338380 Rear Differential Lock

1шт.

7

5197918

FLASHER SWITCH

Hazard, L/CAB

1шт.

VAR.330007-334007-331008

1шт.

8

5173877

TOGGLE SWITCH

Remote Hitch, UP/Down, with 4 spades

2шт.

8

87452577

SWITCH

Remote Hitch, UP/Down, with 3 spades

2шт.

9

47134363

SWITCH

External PTO Control, Serial Range: -C6877

1шт.

VAR.330727-334727-330728-331728-330729-334729-330819-334819, Hydraulic PTO for 12x12 or 20x12

1шт.

VAR.330686-331729-331819-332728

1шт.

10

5189234

BRIDGE

1шт.

VAR.330727-334727-330728-331728-330729-334729-330819-334819, Hydraulic PTO for 12x12 or 20x12

1шт.

11

47056283

LIGHT SWITCH

Roof Headlight

1шт.

VAR.330489-330490-330491-331491, Fitting for Loader

1шт.

12

87399620

TOGGLE SWITCH

PTO SWITCH

1шт.

VAR.330422-330833, PTO Soft Start

1шт.

13

84206941

SWITCH

Hood/Roof Headlight, Serial Range: -D6463

1шт.

VAR.330787-333760, Road Lighting ISO For Loader Dip

1шт.

14

87311254

SWITCH ASSY

, Start Serial: D6877

1шт.

VAR.330727-334727-330728-331728-330729-334729-330819-334819, Hydraulic PTO for 12x12 or 20x12

1шт.

VAR.330686-331729-331819-332728

1шт.

15

84354921

SPACER

, Start Serial: D6877

1шт.

VAR.330727-334727-330728-331728-330729-334729-330819-334819, Hydraulic PTO for 12x12 or 20x12

1шт.

VAR.330686-331729-331819-332728

1шт.
