(1.89.6/02[02]) - "C.B.M." THREE POINT HITCH WITH QUICK ATTACH ENDS FOR MDC (VAR.330922)

Запчасти Case IH FARMALL 95U (1.89.6/02[02]) - "C.B.M." THREE POINT HITCH WITH QUICK ATTACH ENDS FOR MDC (VAR.330922) (09) - IMPLEMENT LIFT

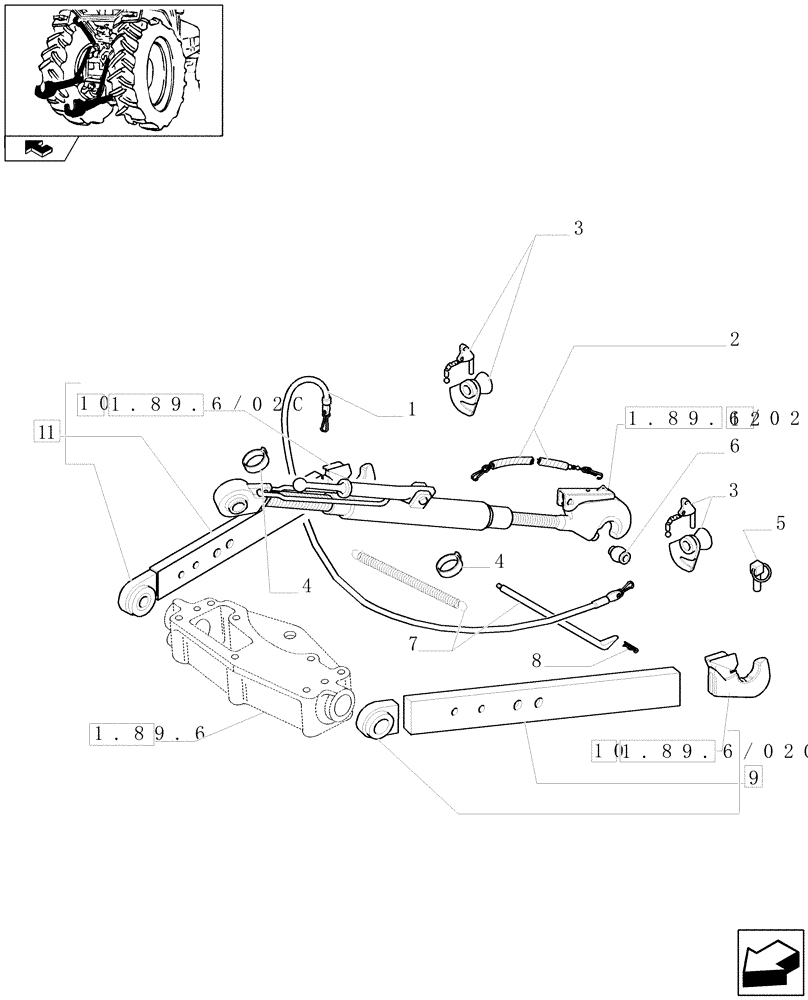

Схема запчастей Case IH FARMALL 95U - (1.89.6/02[02]) - "C.B.M." THREE POINT HITCH WITH QUICK ATTACH ENDS FOR MDC (VAR.330922) (09) - IMPLEMENT LIFT
4
1.89.6
2
1
3
10
1
6
12
9
3
4
1
1.89.6/02c
home
1.89.6/02a
1.89.6/02c
8
10
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5116063

ROPE,4500mm L

1шт.

2

5174395

CABLE,1250mm L, Cat 2, Red Ruby

1шт.

3

5127760

BALL

2 Cat.

2шт.

4

5110543

CLAMP

2шт.

5

5166585

LOCK PIN,11mm OD

2шт.

6

5172480

BALL,25.4mm ID x 50mm OD

2 Cat.

2шт.

7

5116058

SPRING,610mm L

1шт.

8

44901190

COTTER PIN,6.3mm x 77.6mm L

2шт.

9

5199445

LIFT ARM

LH

1шт.

10

5189331

HOOK

2шт.

11

5199444

LIFT ARM

RH

1шт.

12

87309873

UPPER LINK

1шт.

Выбрано товаров: 12
