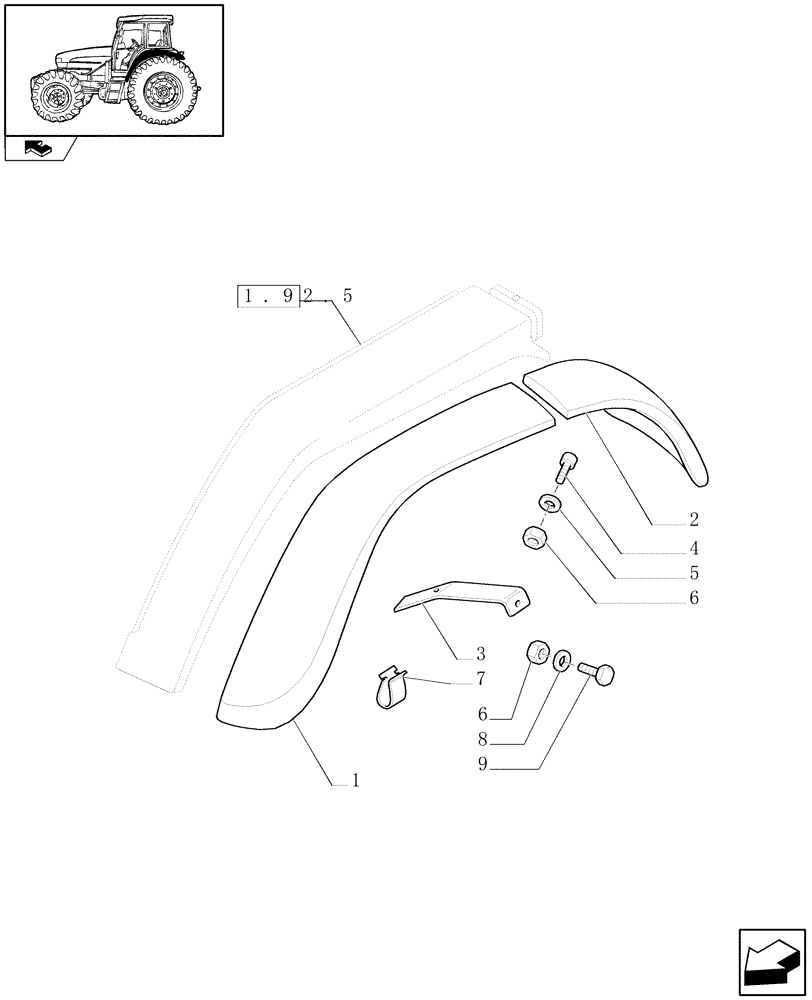

Запчасти Case IH FARMALL 95U (1.92.5/01) - EXTENSIONS FOR WIDE REAR FENDERS - W/CAB (VAR.330877) (08) - SHEET METAL

1

82024492

FENDER EXTENSION

RH Part No longer Serviced, Order Kit 8202443

1шт.

1

82024493

FENDER EXTENSION

LH, Part No Longer Service, Order Kit 87313184

1шт.

2

82024498

FENDER EXTENSION

RH

1шт.

2

82024499

FENDER EXTENSION

LH

1шт.

3

82008692

BRACKET

RH

1шт.

3

82008693

BRACKET

LH

1шт.

4

13276417

SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

4

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

M6 x 20

1шт.

5

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

6

15896211

NUT,M6, Cl 8

4шт.

7

82010838

SPRING CLIP,0.5mm Thk

M6 x 20

38шт.

8

10519407

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.
