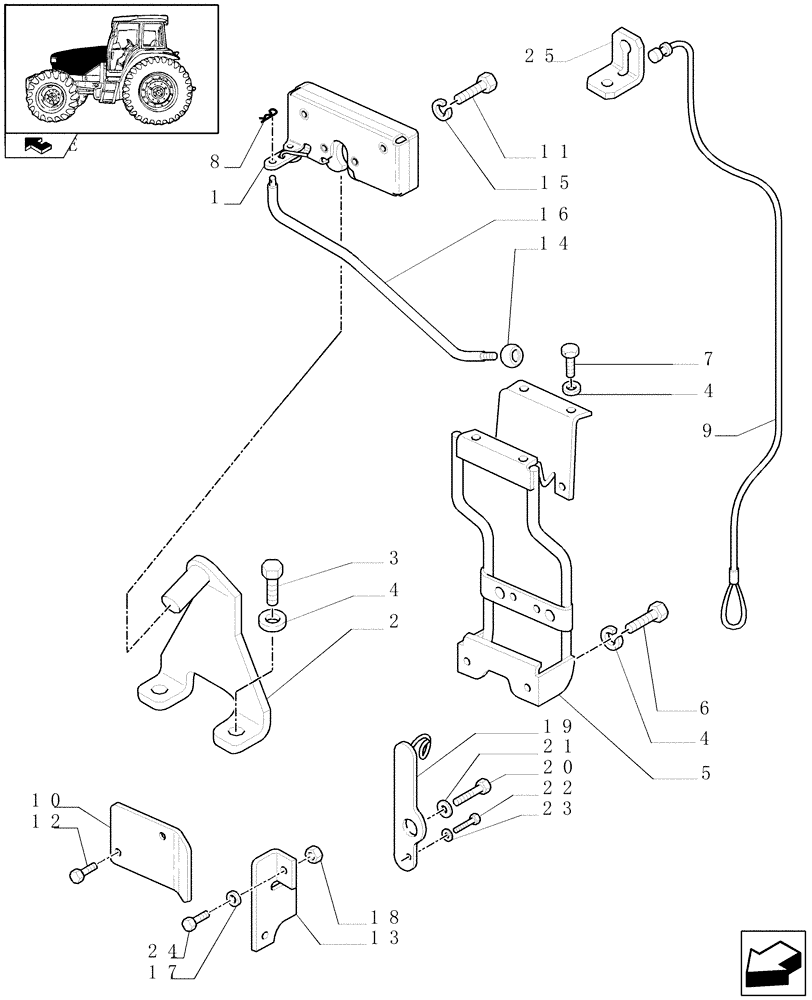

Запчасти Case IH FARMALL 95U (1.83.0[03B]) - HOODS - D6511 (08) - SHEET METAL

1

87729381

LATCH

1шт.

2

47129059

SUPPORT

1шт.

3

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

5

47131352

SUPPORT

1шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

8

10734101

COTTER PIN,M1.6 x 12

1шт.

9

5179381

CABLE,590mm L

1шт.

10

87681342

COVER PLATE

1шт.

JXU 75, JXU 85 / 85U, JXU 95 / 95U, JXU 105 / 105U

1шт.

11

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

12

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

2шт.

JXU 75, JXU 85 / 85U, JXU 95 / 95U, JXU 105 / 105U

1шт.

13

87530302

BRACKET

1шт.

14

84287785

BALL,5mm ID x 16mm OD

1шт.

15

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

2шт.

16

84300391

ROD

1шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

18

14048211

NUT,M8 x 1.25, Cl 8

1шт.

19

87603147

BRACKET

L/Cab

1шт.

20

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

21

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

22

80412064

SCREW

M4 x 16

1шт.

23

14497701

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

D=4

1шт.

24

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

25

5179364

BRACKET

1шт.
