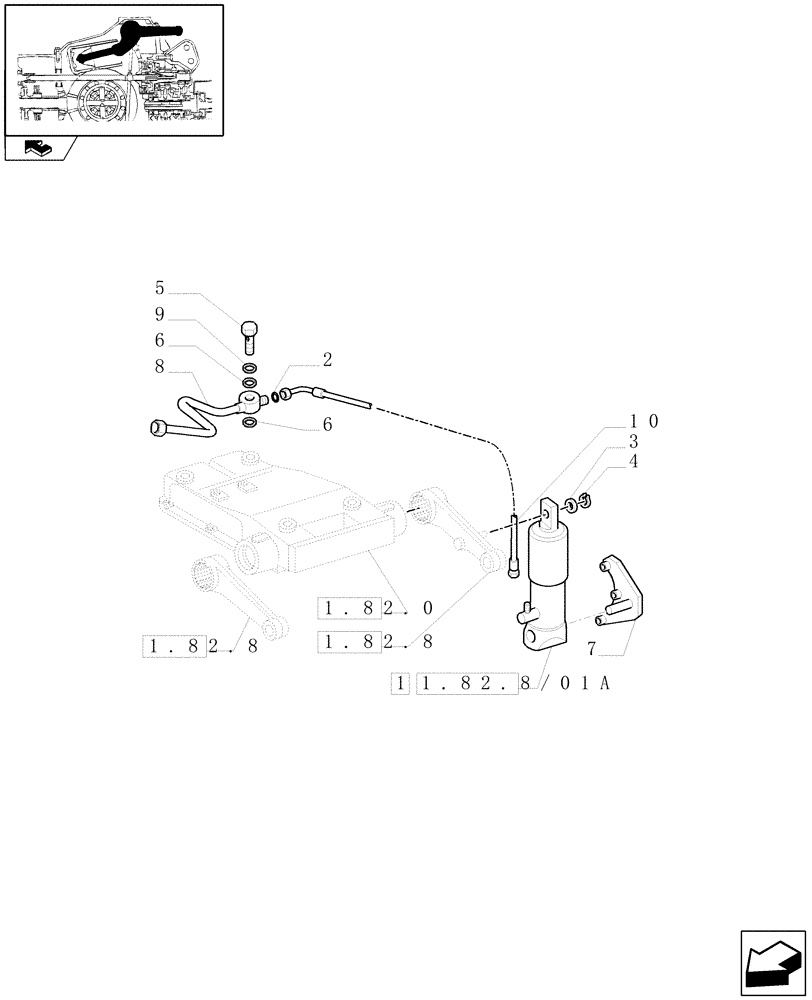

Запчасти Case IH FARMALL 95U (1.82.8/01) - ELECTRONIC LIFTING W/EDC - PIPES, ARMS (07) - HYDRAULIC SYSTEM

1

5171357

HYDRAULIC CYLINDER

1шт.

2

14454080

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

3

44018747

WASHER,28mm ID x 40mm OD x 3mm Thk

D=8 x 40 x 3

1шт.

4

11067676

SNAP RING,M28, Ext

1шт.

5

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

6

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

2шт.

7

5182277

SUPPORT

RH

1шт.

8

87656666

RIGID TUBE,16 mm OD x 253.3, 178.8 mm L

1шт.

9

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22.7 x 30 x 2

1шт.

10

5183166

FLEXIBLE HOSE

9/16"-18, M16 x 1.5

1шт.
