Запчасти Case IH FARMALL 95U (1.82.7/17[01]) - TWO MID-MOUNT VALVES FOR REAR CONTROL VALVES (VAR.330186-333186) - C7237 (07) - HYDRAULIC SYSTEM

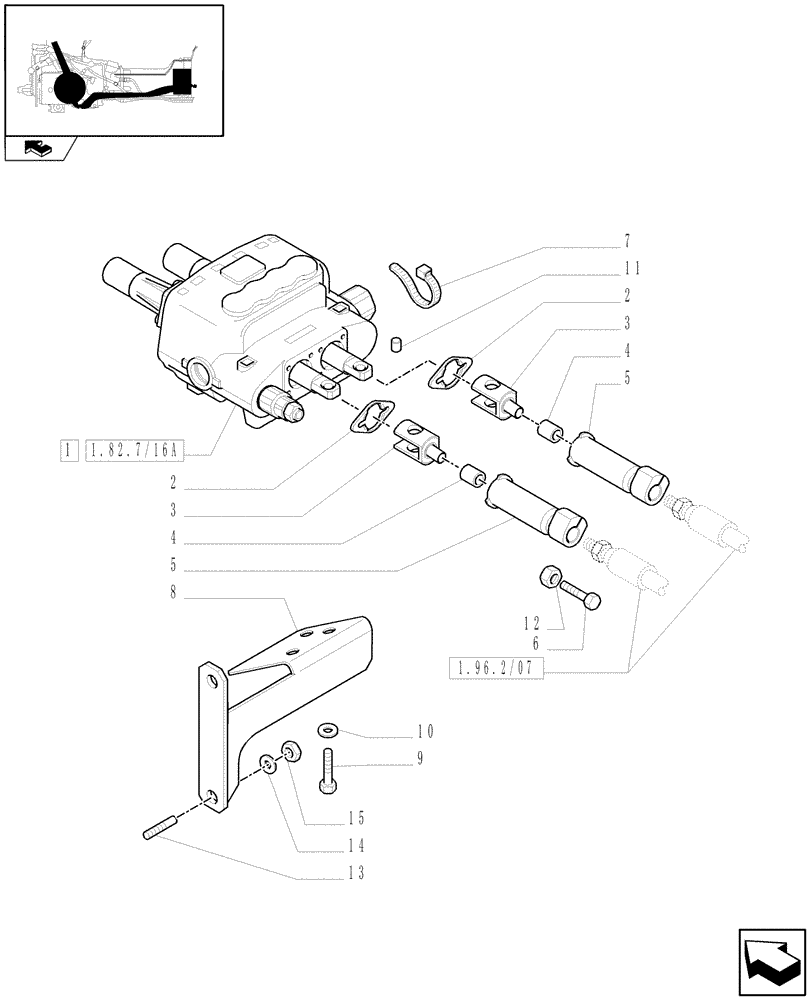

Схема запчастей Case IH FARMALL 95U - (1.82.7/17[01]) - TWO MID-MOUNT VALVES FOR REAR CONTROL VALVES (VAR.330186-333186) - C7237 (07) - HYDRAULIC SYSTEM
10
7
4
4
13
2
1.96.2/07
6
5
12
15
5
1
3
3
11
9
home
1.82.7/16a
14
8
2

Артикул

Название

Примечание

Количество

1

87749620

HYDRAULIC VALVE

ASSY

1шт.

1

87749620R

REMAN-HYD VALVE

FARMALL 95U, FARMALL 85U, FARMALL 105U, All TRACTOR, ASSY (108-)

1шт.

1

87749620C

CORE-VALVE HYD

Return Number

1шт.

2

87303905

FLANGE

2шт.

3

87303906

YOKE

2шт.

4

87303907

BUSHING,16.2mm ID x 19.5mm OD x 15.5mm L

1шт.

5

87302881

DISTRIBUTOR,14 - 20 mm ID x 95 mm L

2шт.

6

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

2шт.

6

14304220

HEX SOC SCREW,M5 x 16mm, Cl 8.8

4шт.

7

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.

8

87591500

SUPPORT

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

11

87332065

PIN,9mm OD x 17mm L

2шт.

12

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

6шт.

13

11800624

STUD

M16x22x45

1шт.

13

11801124

STUD

M16x22

1шт.

14

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

16x32

2шт.

15

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

M16x1.5

2шт.

Выбрано товаров: 19
