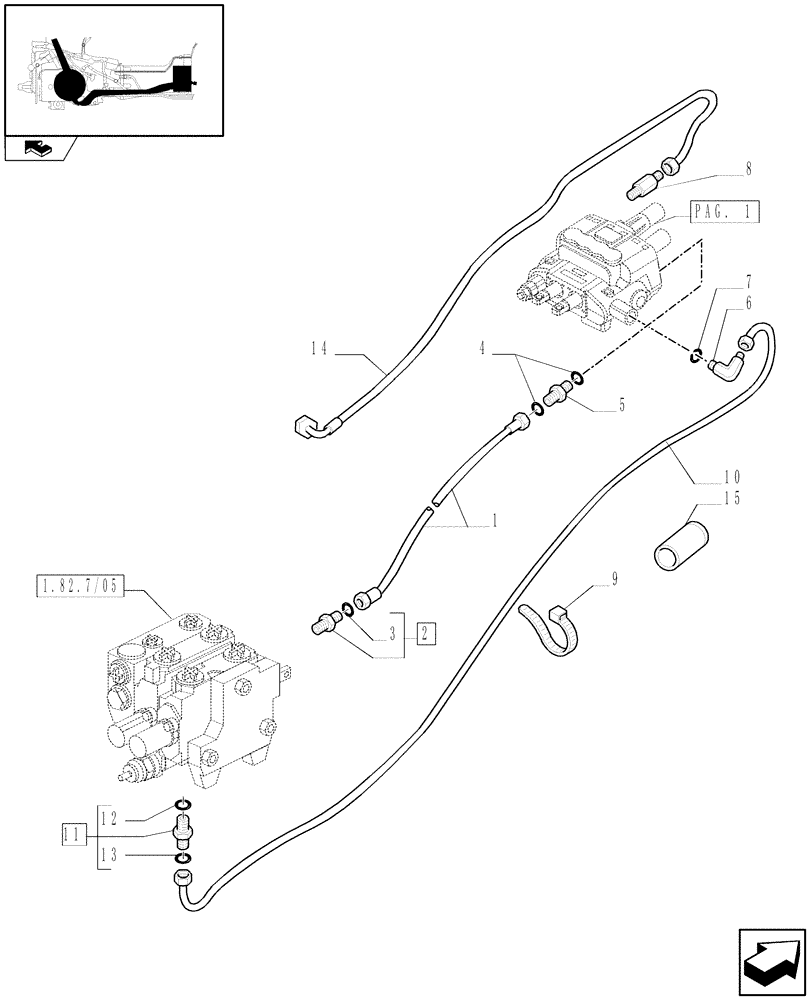

Запчасти Case IH FARMALL 95U (1.82.7/16[02]) - TWO MID-MOUNT VALVES FOR REAR "BOSCH" CONTROL VALVES - PIPES (VAR.330386-333386-331377) (07) - HYDRAULIC SYSTEM

1

87303234

FLEXIBLE HOSE

Discharge

1шт.

2

47123789

HYD CONNECTOR

1шт.

3

14438185

O-RING,24mm ID x 3mm

D=3x24

1шт.

4

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=23.5x30x1.5

2шт.

5

5167516

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

1шт.

6

79099899

ELBOW

1шт.

7

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

M18.77 x 1.78

1шт.

8

87597860

PROP

STRT CONN SAE 37, 1" 1/16-12 -M22X1.5, Sealing Washer 87332142 will fit this Conn

1шт.

9

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.

9

13000990

COLLAR,60mm - 80mm, Worm Gear

60x80

1шт.

VAR.331377

1шт.

10

87688309

FLEXIBLE HOSE,15.9mm ID x 1515mm L, SAE 100R2

, Serial Range: Delivery-Remotes

1шт.

VAR.331377

1шт.

11

5185525

HYD CONNECTOR,15.5 - M22 x 1.5 ORFS

1шт.

VAR.331377

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

VAR.331377

1шт.

13

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

VAR.331377

1шт.

14

87687059

RIGID TUBE

Delivery to Mid Mount

1шт.

VAR.331377

1шт.

15

4959735

SPACER,18mm ID x 25mm OD x 30mm L

1шт.

VAR.331377

1шт.
