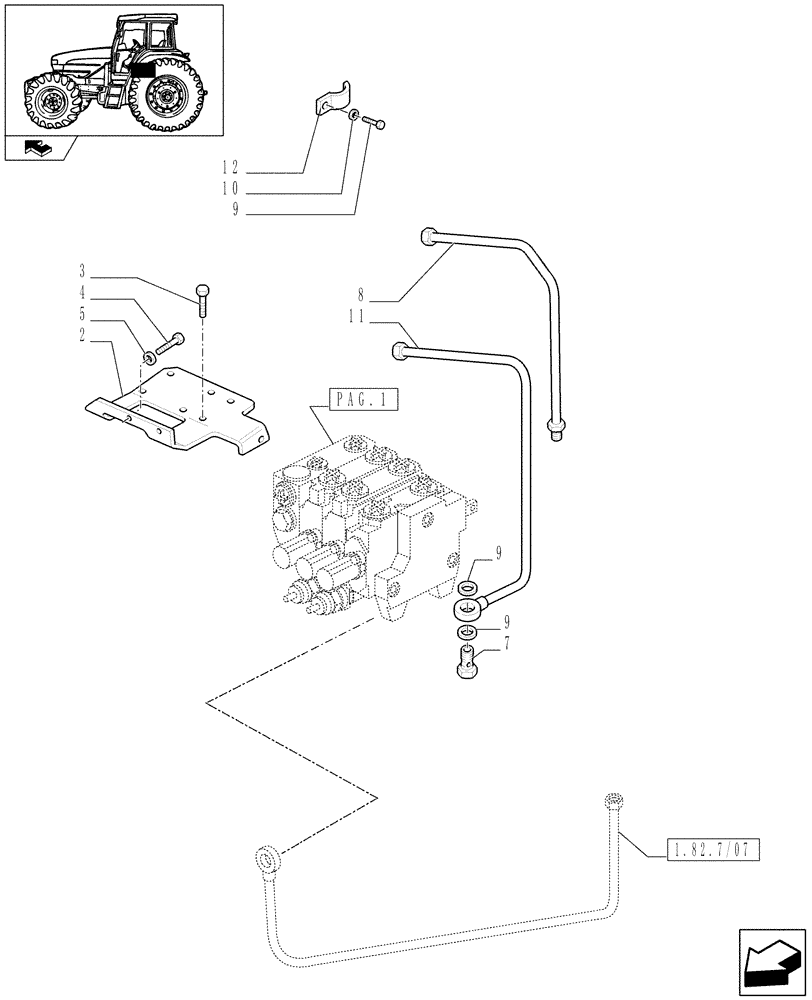

Запчасти Case IH FARMALL 95U (1.82.7/06[03]) - THREE CONTROL VALVES (BOSCH) - PIPES & CONTROL VALVES (VAR.330358) (07) - HYDRAULIC SYSTEM

1

47129343

CONTROL VALVE

1шт.

2

47123301

SUPPORT

1шт.

3

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

4

11109221

BOLT,Hex, M12 x 22mm, Cl 8.8, Full Thd

4шт.

5

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

6

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

2шт.

6

47124968

SEALING WASHER

D=27

2шт.

7

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

8

5179392

HYD TUBE

1шт.

9

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

11

47123635

HYD TUBE

1шт.

12

5156414

CLAMP,20mm ID, 6.5mm Bolt Hole, J Type

1шт.
