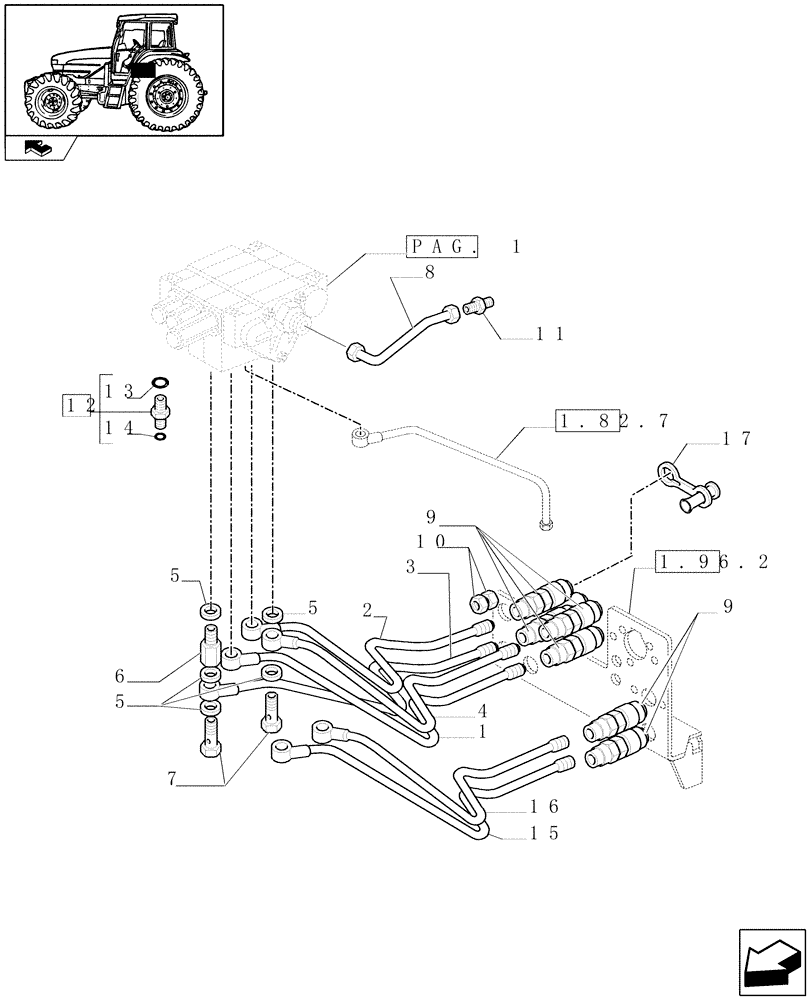

Запчасти Case IH FARMALL 95U (1.82.7/04[02]) - 1 S/D, 1W/FLOAT, 1 W/ FLOAT & AUTOM. CUTOUT DISTRIBUTORS - PIPES AND QUICK COUPLINGS (VAR.330369) (07) - HYDRAULIC SYSTEM

1

5185503

HYD TUBE

1шт.

2

5129183

HYD TUBE

1шт.

3

5171343

TUBE

1шт.

4

5185504

HYD TUBE

1шт.

5

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

10шт.

6

5121789

REDUCER,M18 x 1.5 M ORB; M18 x 1.5 F ORB

3шт.

7

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5

6шт.

8

5166878

TUBE

1шт.

9

5152194

COUPLING, QUICK, FEM

6шт.

9

5189323

COUPLING, QUICK, FEM,107.3mm L

include p/n 1534623C1

6шт.

1534623C1

SEAL KIT

1шт.

10

5129168

BHD LOCK NUT,M24 x 1.5

M24 x 1.5

12шт.

11

5167516

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

1шт.

12

5185525

HYD CONNECTOR,15.5 - M22 x 1.5 ORFS

1шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

14

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

15

5129181

HYD TUBE

1шт.

16

5129179

HYD TUBE

1шт.

17

5179576

PLUG,24mm, Green

Green

2шт.

17

5179577

PLUG,24mm, Blu

Blue

2шт.

17

5179578

PLUG,24mm, Brown

Brown

2шт.
