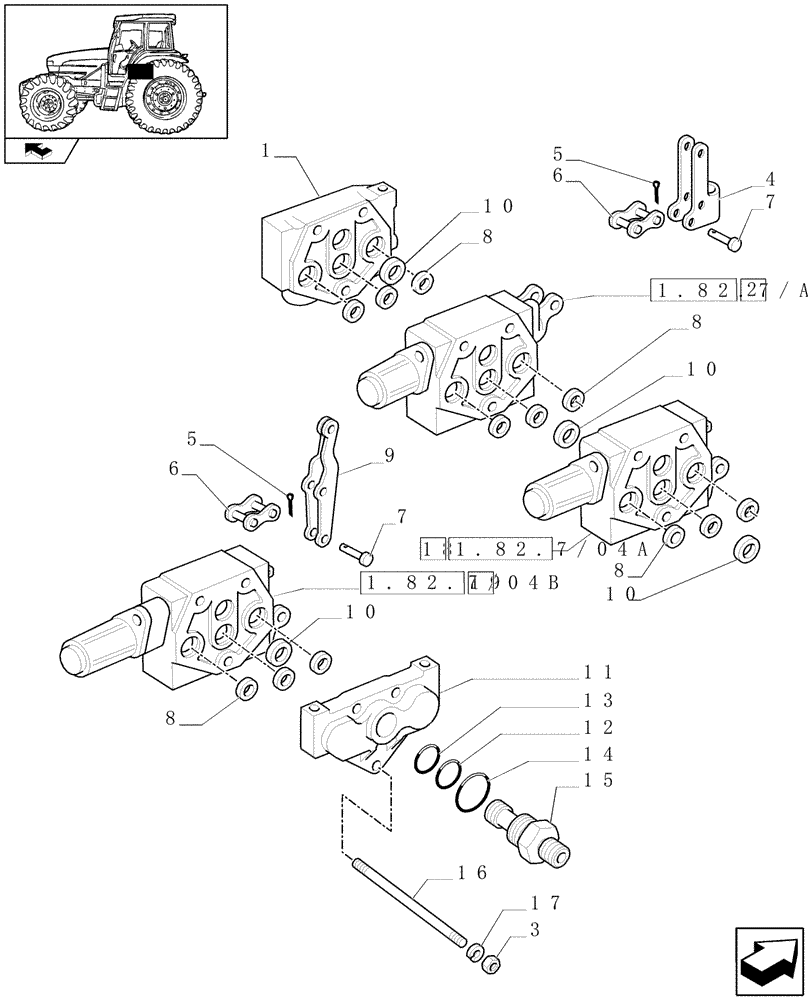

Запчасти Case IH FARMALL 95U (1.82.7/04[01]) - 1 S/D, 1W/FLOAT, 1 W/ FLOAT & AUTOM. CUTOUT DISTRIBUTORS - CONTROL VALVES & GASKETS (VAR.330369) (07) - HYDRAULIC SYSTEM

1

87608164

BODY

1шт.

2

87396886

VALVE SECTION

1шт.

3

5116857

NUT,3/8" - 24

3/8"-24 UNF-2B

6шт.

4

5126027

LINK

L/Cab

1шт.

5

10734301

COTTER PIN,M2 x 18

3шт.

6

5116896

LINK,19.05mm Pitch

3шт.

7

5126824

PIN,6.4mm OD x 21.5mm L

3шт.

8

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

12шт.

9

47134472

CLEVIS

2шт.

10

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING 15.54 x 2 x 2

4шт.

11

87396846

COVER

1шт.

12

5146476

RING,17.91mm ID x 20.61mm OD x 1.24mm Thk

1шт.

13

5135735

O-RING,1.78mm Thk x 17.17mm ID, 80 Duro

1шт.

14

5116854

O-RING,27.05mm ID x 34.93mm OD x 3mm Thk

1шт.

15

5146535

COUPLING,M22 x 1.5 x 3/4"

1шт.

16

5146463

THREADED ROD,3/8" - 24 x 7-5/8"

L=193.5

3шт.

17

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

18

87396867

VALVE SECTION

W/FL

1шт.

19

87396872

VALVE SECTION

W/FL and Kick Out

1шт.
