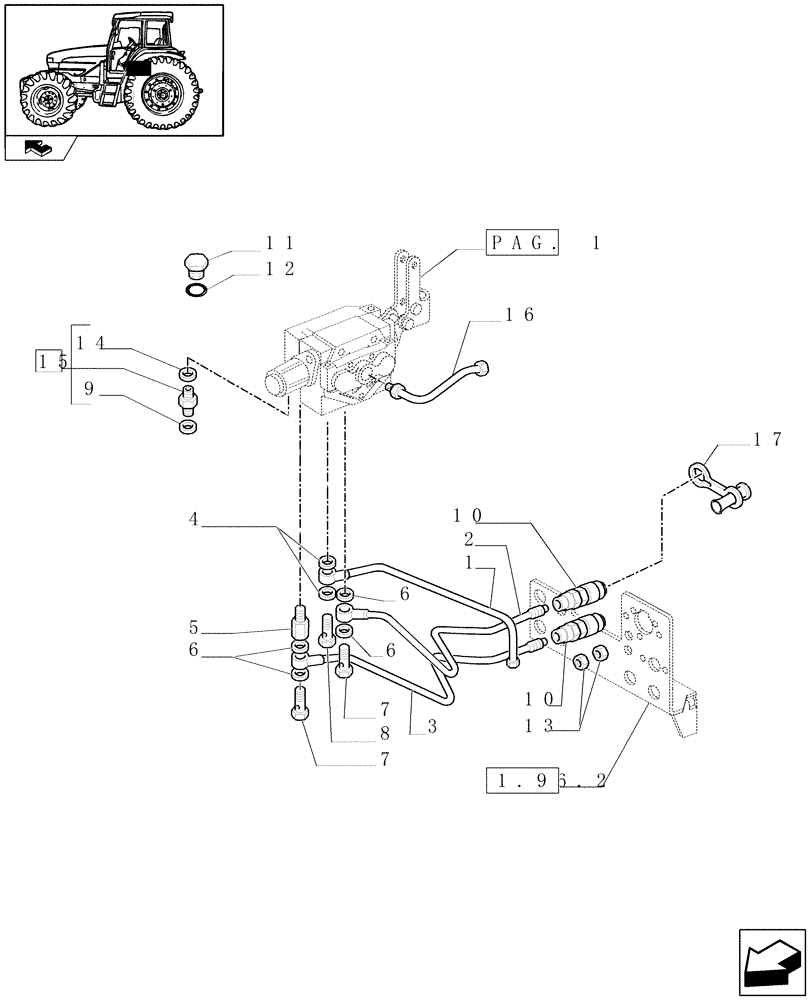

Запчасти Case IH FARMALL 95U (1.82.7[02]) - DOUBLE EFFECT DISTRIBUTOR - PIPES AND QUICK COUPLINGS (07) - HYDRAULIC SYSTEM

1

5171297

HYD TUBE

1шт.

2

5185504

HYD TUBE

1шт.

3

5185503

HYD TUBE

1шт.

4

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22

2шт.

5

5121789

REDUCER,M18 x 1.5 M ORB; M18 x 1.5 F ORB

M8

1шт.

6

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

D=18

5шт.

7

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M8 x 34

2шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

For Open Center

1шт.

8

47124882

BANJO BOLT

For Closed Center

1шт.

9

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

10

5152194

COUPLING, QUICK, FEM

2шт.

10

5189323

COUPLING, QUICK, FEM,107.3mm L

include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

11

10273111

PLUG,M18 x 1.5 x 13

1шт.

12

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

Parker

1шт.

13

5129168

BHD LOCK NUT,M24 x 1.5

M24 x 1.5

4шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

15

5185525

HYD CONNECTOR,15.5 - M22 x 1.5 ORFS

Straight, 1-1/16"-12UN - M22 x 1.5

1шт.

16

5166874

HYD TUBE

1шт.

17

5179576

PLUG,24mm, Green

Green

2шт.
