(1.82.1/05) - GROUP SIMPLE EFFECT FOR REAR REMOTES - BLOCK AND PIPES (VAR.330102)

Запчасти Case IH FARMALL 95U (1.82.1/05) - GROUP SIMPLE EFFECT FOR REAR REMOTES - BLOCK AND PIPES (VAR.330102) (07) - HYDRAULIC SYSTEM

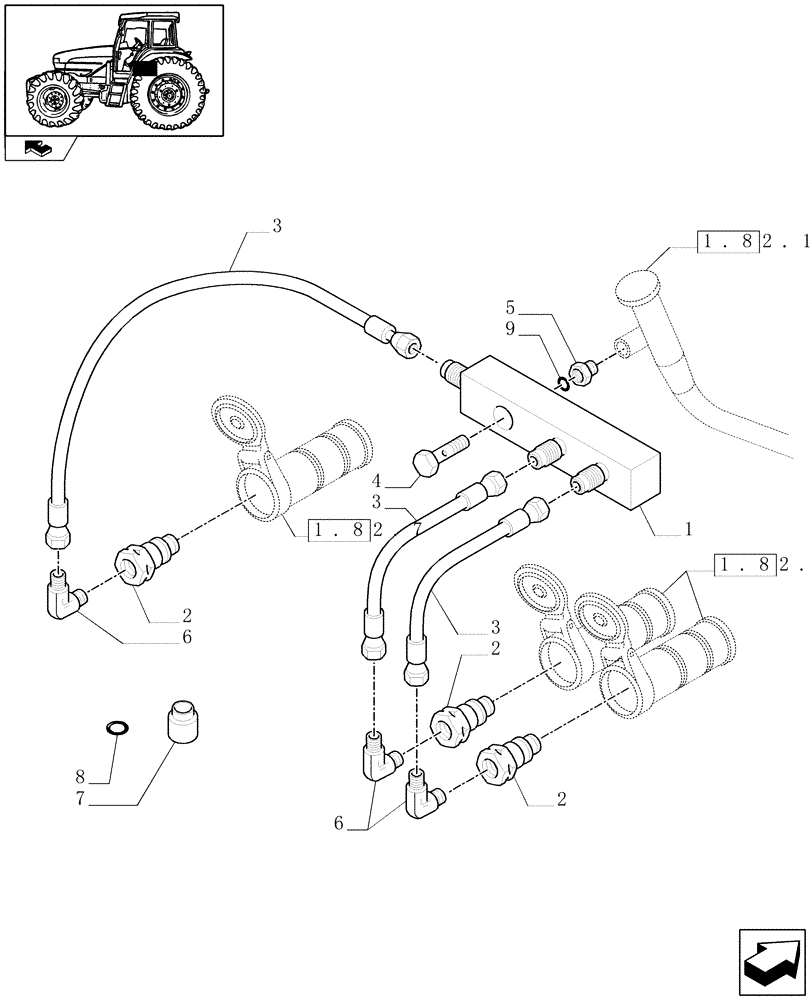

Схема запчастей Case IH FARMALL 95U - (1.82.1/05) - GROUP SIMPLE EFFECT FOR REAR REMOTES - BLOCK AND PIPES (VAR.330102) (07) - HYDRAULIC SYSTEM
2
8
4
home
3
1
2
6
3
6
5
2
1.82.7
1.82.1
1.82.7
7
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87542531

BLOCK

1шт.

2

5101741

QUICK MALE COUPLING

3шт.

3

87542885

HYDRAULIC HOSE,10mm ID x 400mm L

3шт.

4

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

5

87543949

PLUG

1шт.

6

87616709

HYD CONNECTOR

3шт.

7

87542486

PLUG

3шт.

8

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

9

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
