Запчасти Case IH FARMALL 95U (1.82.1/01) - 80 L/MIN COMBINED VALVE FOR MID-MOUNT VALVES (VAR.330632-331632-332632) (07) - HYDRAULIC SYSTEM

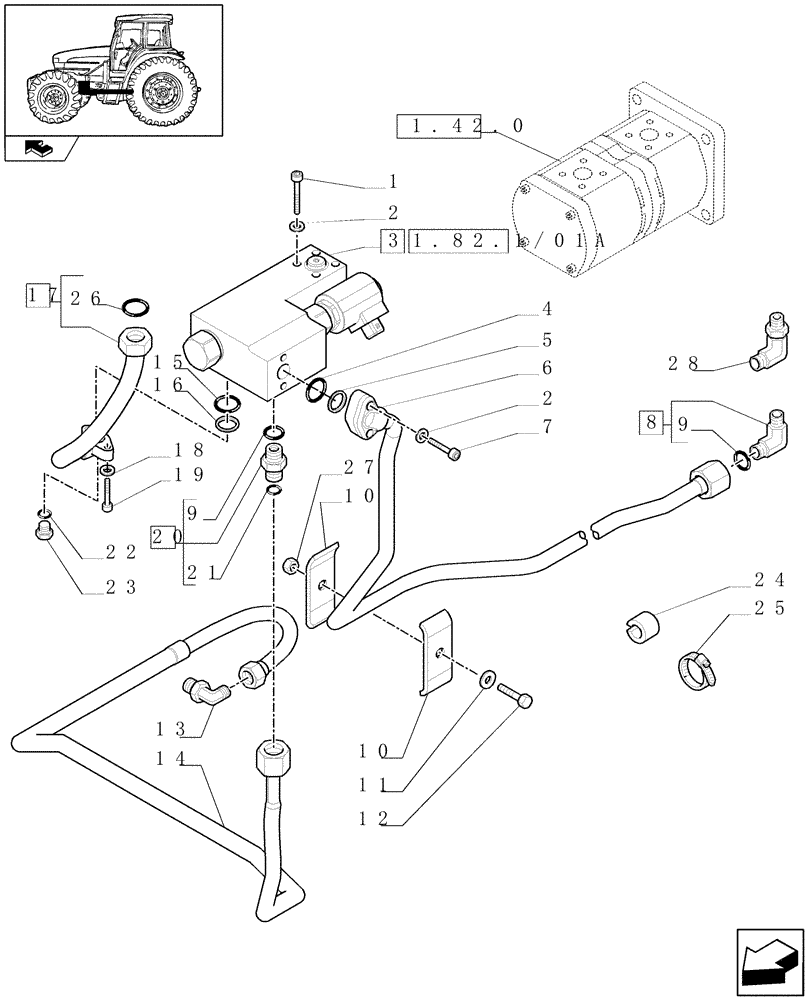

Схема запчастей Case IH FARMALL 95U - (1.82.1/01) - 80 L/MIN COMBINED VALVE FOR MID-MOUNT VALVES (VAR.330632-331632-332632) (07) - HYDRAULIC SYSTEM
11
24
15
17
home
1.82.1/01a
16
27
22
5
12
20
2
25
10
8
19
7
1
1.42.0
13
4
26
10
3
21
18
6
9
14
23
2
28
9

Артикул

Название

Примечание

Количество

1

14304824

HEX SOC SCREW,M6 x 55mm, Cl 8.8

4шт.

2

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

6шт.

3

87665958

HYDRAULIC VALVE

1шт.

4

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

5

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

6

87665902

RIGID TUBE,14 mm OD

LUBRIFICATION

1шт.

7

14305421

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

8

5155452

ELBOW

7/8-14 - M18 x 1.5

1шт.

VAR.330632, Rear Mechanical Diff. Lock

1шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

10

5170599

BRACKET

2шт.

11

12601270

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, PLN

1шт.

12

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

1шт.

13

87670188

HYD CONNECTOR,M22 x 1.5 x 50mm

M22 x 1.5 - 13/16

1шт.

14

87665927

RIGID TUBE,14 mm OD

EXCESS

1шт.

15

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

16

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

17

87668514

RIGID TUBE,16 mm DIA

DELIVERY, TO STEERING MOTOR

1шт.

18

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

19

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

20

87555082

HYDRAULIC VALVE

1шт.

21

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

22

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

1шт.

23

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

24

4959735

SPACER,18mm ID x 25mm OD x 30mm L

1шт.

25

13000990

COLLAR,60mm - 80mm, Worm Gear

60 x 80MM

1шт.

25

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

26

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

27

15896211

NUT,M6, Cl 8

1шт.

28

87615926

HYD CONNECTOR

1шт.

VAR.331632, Rear Hydraulic Diff. Lock

1шт.

Выбрано товаров: 31
