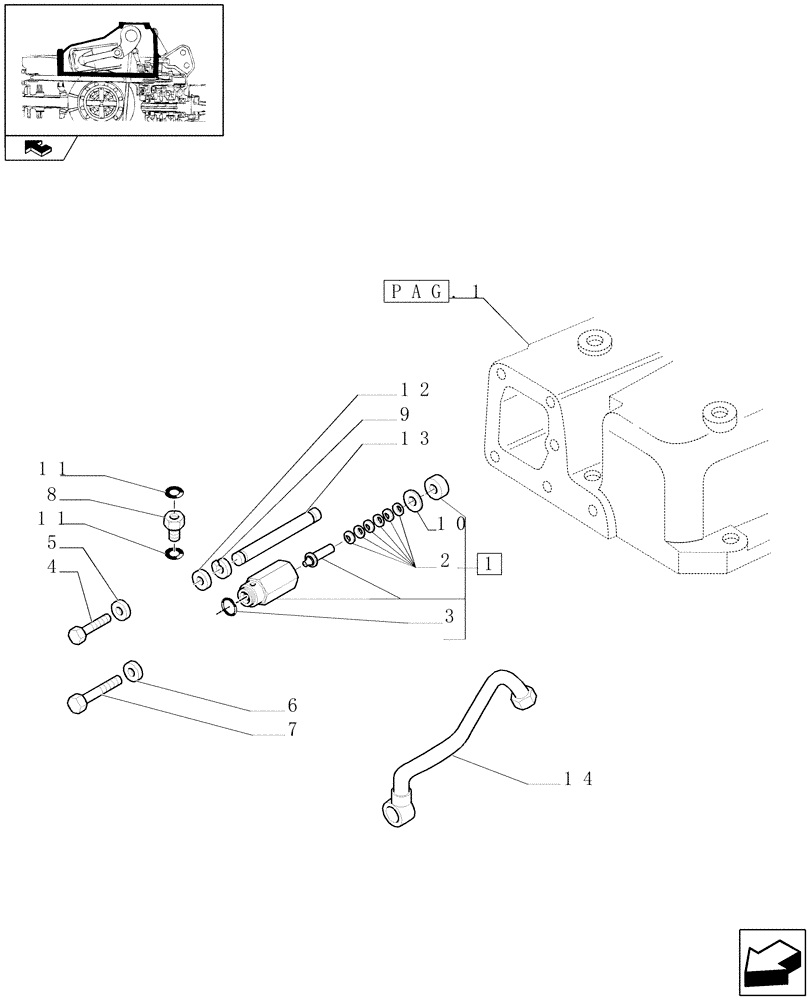

Запчасти Case IH FARMALL 95U (1.82.0/01[02]) - HYDR. LIFT FOR POWER SHUTTLE WITH EDC - CYLINDER PRESSURE LIMITING VALVE - W/CAB (VAR.330753-331753-330832) (07) - HYDRAULIC SYSTEM

1

5117739

VALVE PRESSURE RELIE,M20 x 1.5

1шт.

2

586761

VALVE SPRING,10.2mm ID x 20mm OD x 1.1mm Thk

22шт.

3

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

4

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

5

10516674

LOCK WASHER,M8

4шт.

6

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10

1шт.

7

15971524

SCREW,Hex, M10 x 1.25 x 85mm, Cl 8.8

1шт.

8

5181598

PROP

M18 x 1.5

1шт.

9

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

10

4951123

SPRING WASHER,10.1mm ID x 20.4mm OD x 3mm Thk

D=10 x 20, 4 x 3

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

12

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

2шт.

13

5176630

PIPE,20mm ID x 105mm L

1шт.

14

47123661

HYD TUBE

1шт.
