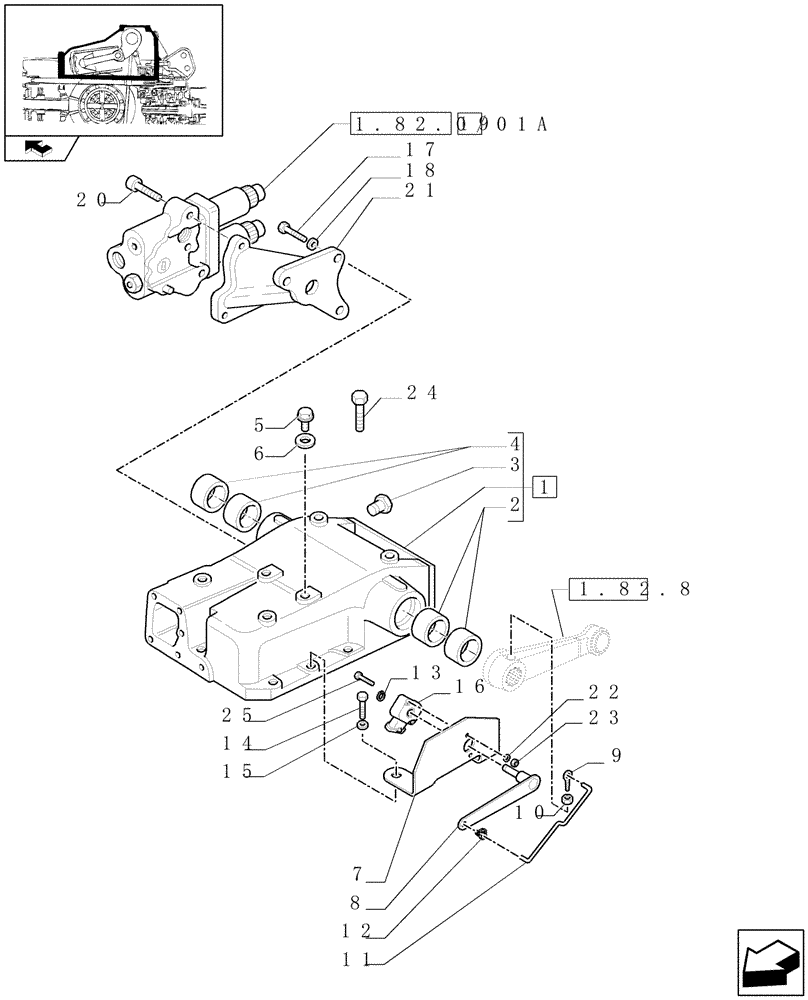

Запчасти Case IH FARMALL 95U (1.82.0/01[01]) - HYDRAULIC LIFT FOR POWER SHUTTLE WITH EDC - COVER AND VALVES - W/CAB (VAR.330753-331753-330832) (07) - HYDRAULIC SYSTEM

1

5186434

BODY

1шт.

2

5186405

BUSHING,62.8mm ID x 68.03mm OD x 40mm L

62.8 x 68 x 158 x 40, LH

2шт.

3

14328701

PLUG,M20, Tapered

1шт.

4

5186406

BUSHING,55.1mm ID x 60.03mm OD x 40mm L

55 x 60 x 40, RH

2шт.

5

10305114

PLUG,M22 x 1.5 x 21

1шт.

5

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

7

47137733

BRACKET

1шт.

8

87389269

LEVER

1шт.

9

5171855

EYEBOLT

1шт.

10

15896211

NUT,M6, Cl 8

1шт.

11

82014120

ROD

1шт.

12

9821714

CLIP

2шт.

13

11087974

CIRCLIP,Ext., M8, DAC

1шт.

14

14331621

HEX SOC SCREW,M12 x 1.25 x 55mm, Cl 8.8, Full Thd

2шт.

15

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

1шт.

16

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

17

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

18

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

3шт.

19

5181601

HYDRAULIC VALVE

1шт.

20

14302224

HEX SOC SCREW,M8 x 1.25 x 55mm, Cl 8.8, Full Thd

3шт.

21

5181602

SUPPORT

1шт.

22

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

23

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

24

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

24

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

3шт.

24

15541524

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

3шт.

25

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

2шт.
