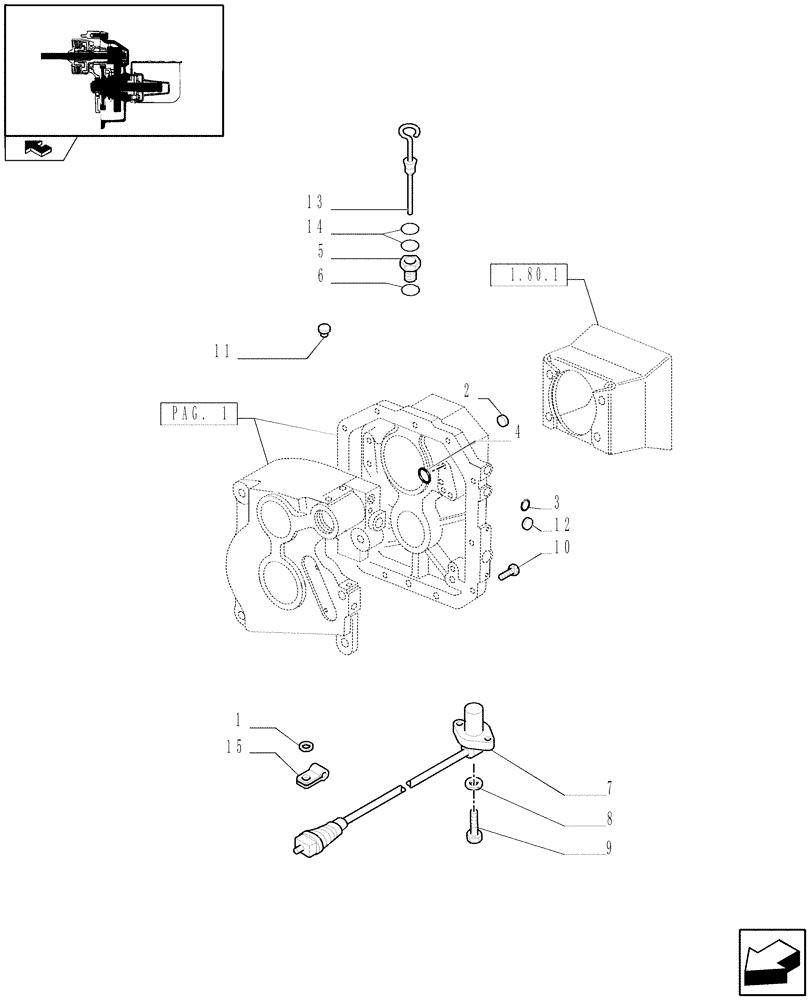

Запчасти Case IH FARMALL 95U (1.80.1/06[02]) - HYDR. 540 POWER TAKE OFF - COVER AND SENSOR (VAR.330727-334727) (07) - HYDRAULIC SYSTEM

1

11191574

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

16x34x3.6

1шт.

2

14328601

PLUG,M18, Tapered

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

9 x 15 x 12

1шт.

4

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

5

5169718

PLUG,M22 x 1.5

1шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

7

87564763

SENSOR

1шт.

8

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

9

10977711

BOLT,Hex, M5 x 14mm, Cl 5.8, Full Thd

2шт.

10

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

11

5196779

PLUG,Cap locking hole

D=9

2шт.

12

14328701

PLUG,M20, Tapered

1шт.

13

5169720

DIPSTICK,207mm L

1шт.

14

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

15

5164323

CLAMP

1шт.
