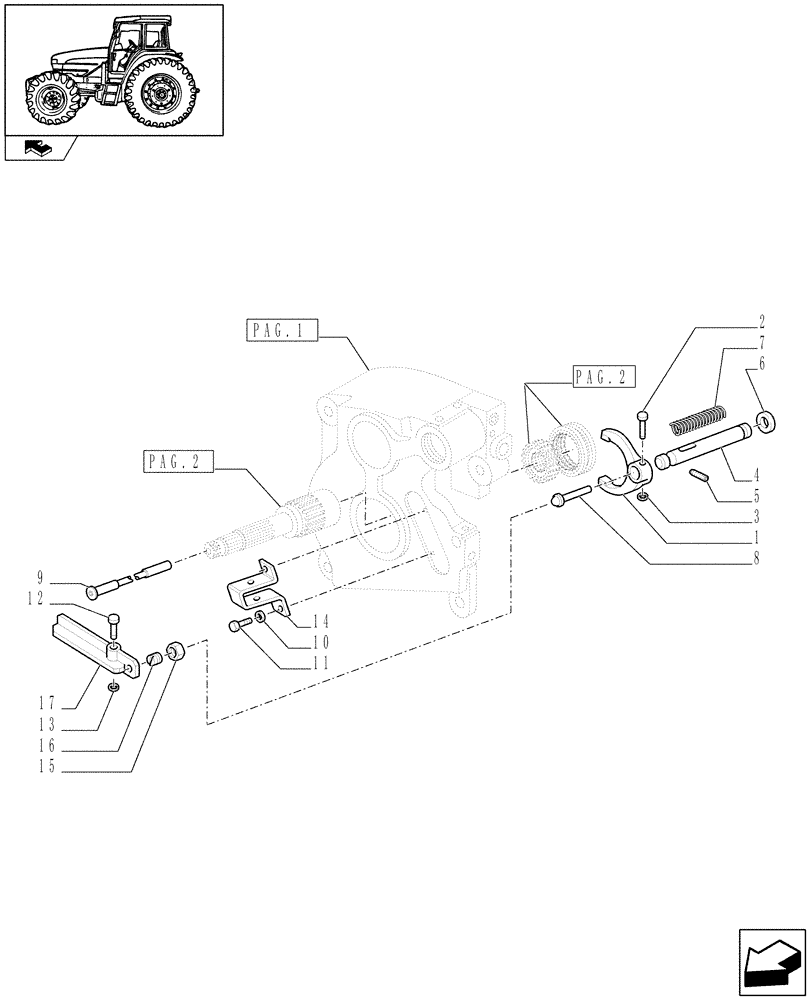

Запчасти Case IH FARMALL 95U (1.80.1/04[03]) - MECH. 540/1000 POWER TAKE OFF (NA) - SPEED SELECTION MECHANISM (VAR.330815-331815) (07) - HYDRAULIC SYSTEM

1

5171265

SHIFTER FORK

1шт.

2

5171334

PIN,5.99mm OD x 42mm L

1шт.

3

86507012

SNAP RING,M6, Ext

1шт.

4

5179748

ROD

1шт.

5

13798621

SET SCREW,Hex Skt, M8 x 12mm, Cone Pt

1шт.

6

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

7

5171335

SPRING

1шт.

8

5171262

PIN,8mm OD x 72mm L

1шт.

9

5171267

PIN,10mm OD x 198.5mm L

1шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

11

14433121

HEX SOC SCREW,M6 x18mm, Cl 8.8, Full Thd

2шт.

12

5179749

PIN,9.6mm OD x 43.5mm L

1шт.

13

11065976

CIRCLIP,M10, Ext

1шт.

14

5179750

SUPPORT

1шт.

15

16103614

THIN NUT,Thin, M12, 1.25 Pitch, Cl 04

1шт.

16

5171363

PIN

M12

1шт.

17

5171261

LEVER

1шт.
