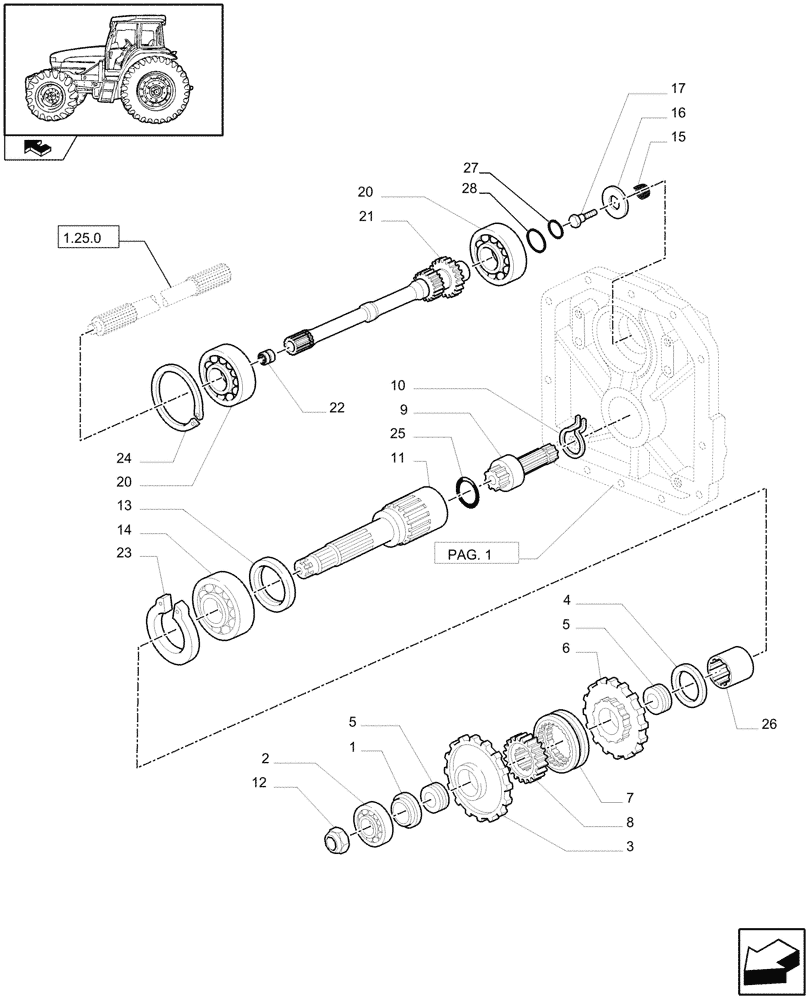

Запчасти Case IH FARMALL 95U (1.80.1/04[02]) - MECH. 540/1000 POWER TAKE OFF (NA) - SHAFTS & GEARS (VAR.330815-331815) (07) - HYDRAULIC SYSTEM

1

5162811

THRUST WASHER,35.1mm ID x 62mm OD x 6.5mm Thk

1шт.

2

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35 x 80 x 21

1шт.

3

47124070

GEAR

540 RPM

1шт.

4

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

5

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

6

47124069

GEAR

1000 RPM

1шт.

7

5145798

SYNCHRONIZER,24T

1шт.

8

5171264

GEAR,14T Internal / 24T External

1шт.

9

47133081

PTO SHAFT

540 RPM

1шт.

9

47133076

PTO SHAFT,162mm L

1000 RPM

1шт.

10

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

11

5198353

SHAFT

1шт.

12

5122985

NUT,Ring, M32, 1.5 Pitch

M32 x 1.5

1шт.

13

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

60 x 80 x 10

1шт.

14

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

1шт.

15

47127604

SPRING,Compression, 31mm OD x 33.3mm L

1шт.

16

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

17

47130774

PIN,13.5mm OD x 22mm L

1шт.

18

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

19

14455080

O-RING,50.52mm ID x 1.78mm

1шт.

20

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

2шт.

21

87578799

SHAFT

1шт.

22

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

15 x 21 x 16

1шт.

23

370013

SNAP RING,M90 x 3mm Thk, Internal

1шт.

24

11062476

SNAP RING,M90, Int

1шт.

25

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

56.82 x 2.62

1шт.

26

5198038

SLEEVE,12T

1шт.

27

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

28

14455080

O-RING,50.52mm ID x 1.78mm

1шт.
