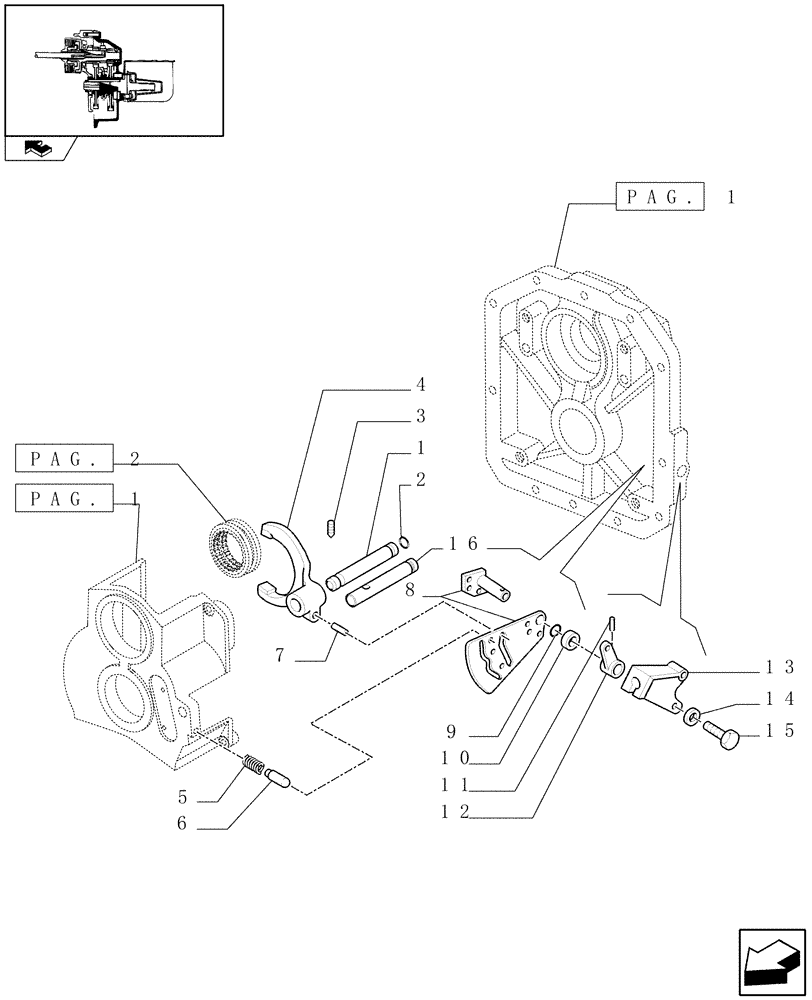

Запчасти Case IH FARMALL 95U (1.80.1/01[03]) - MECH. 540/750 POWER TAKE OFF - SPEED SELECTION MECHANISM (07) - HYDRAULIC SYSTEM

1

5162788

ROD

, Serial Range: -C6282

1шт.

2

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

3

13798621

SET SCREW,Hex Skt, M8 x 12mm, Cone Pt

1шт.

4

5162814

SHIFTER FORK

, Serial Range: -C7207

1шт.

4

84497598

YOKE

, Start Serial: D7207

1шт.

5

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

6

5150839

PAWL,8.5mm OD x 15.4mm L

1шт.

7

5154545

PIN,10mm OD x 25mm L

1шт.

8

5162792

SELECTOR

1шт.

9

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

10

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

11

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

12

5180999

LEVER

1шт.

13

5180998

BRACKET

1шт.

14

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

15

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

87584138

ROD

, Serial Range: D6282-C7207

1шт.

16

84497073

ROD

, Start Serial: D7207

1шт.
