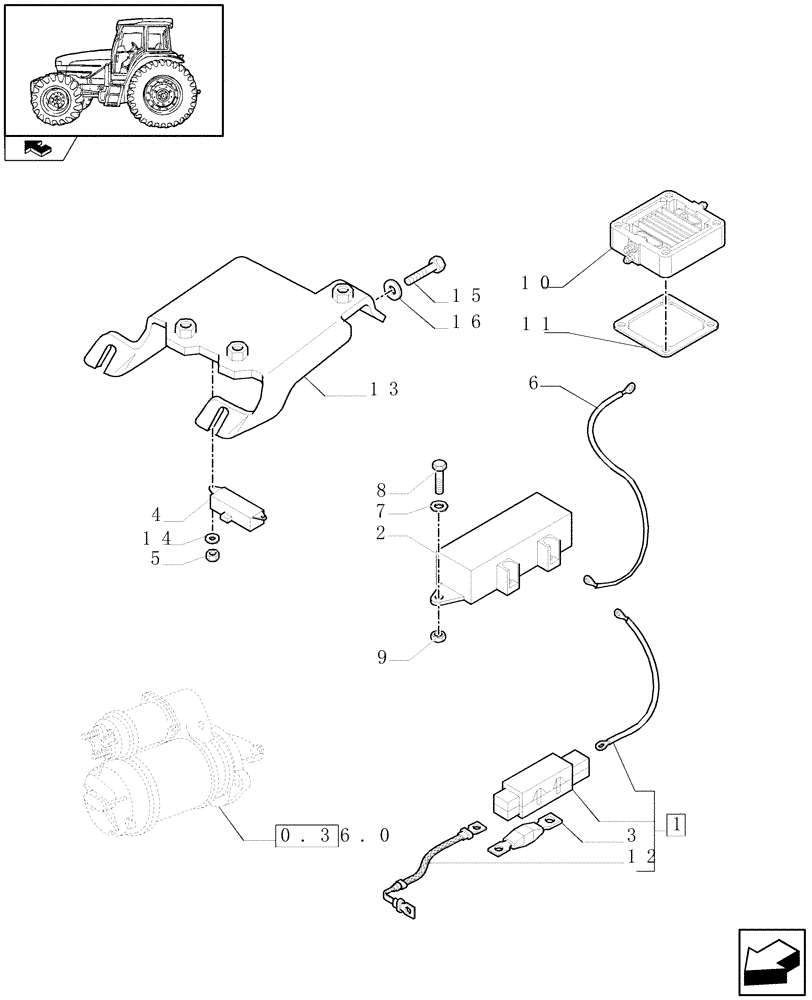

Запчасти Case IH FARMALL 95U (1.75.4/02) - AIR HEATER TYPE ENGINE STARTING AID (VAR.331206-333206) (06) - ELECTRICAL SYSTEMS

1

47134147

WIRE HARNESS

ASSY, Grid Heater

1шт.

2

82022813

RELAY,12V, High Current

W/Cab

1шт.

3

11056290

FUSE,125A, Maxi

125A, Green

1шт.

4

87357538

ECU

1шт.

5

14040611

NUT,Hex W/Captive Spng, M6

M6

2шт.

5

12574211

NUT,M6 x 1, Cl 8

2шт.

6

47129391

WIRE HARNESS

W/Cab

1шт.

7

14496404

WASHER,M6 x 12 x 2 Thk

W/Cab

2шт.

8

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

W/Cab

2шт.

9

10789611

NUT

2шт.

10

2831019

HEATER,24V

1шт.

11

4899921

GASKET,1.2mm Thk

2шт.

12

47132425

WIRE HARNESS

L=100

1шт.

13

87601872

BRACKET

1шт.

14

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

15

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

16

11193279

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD

1шт.
