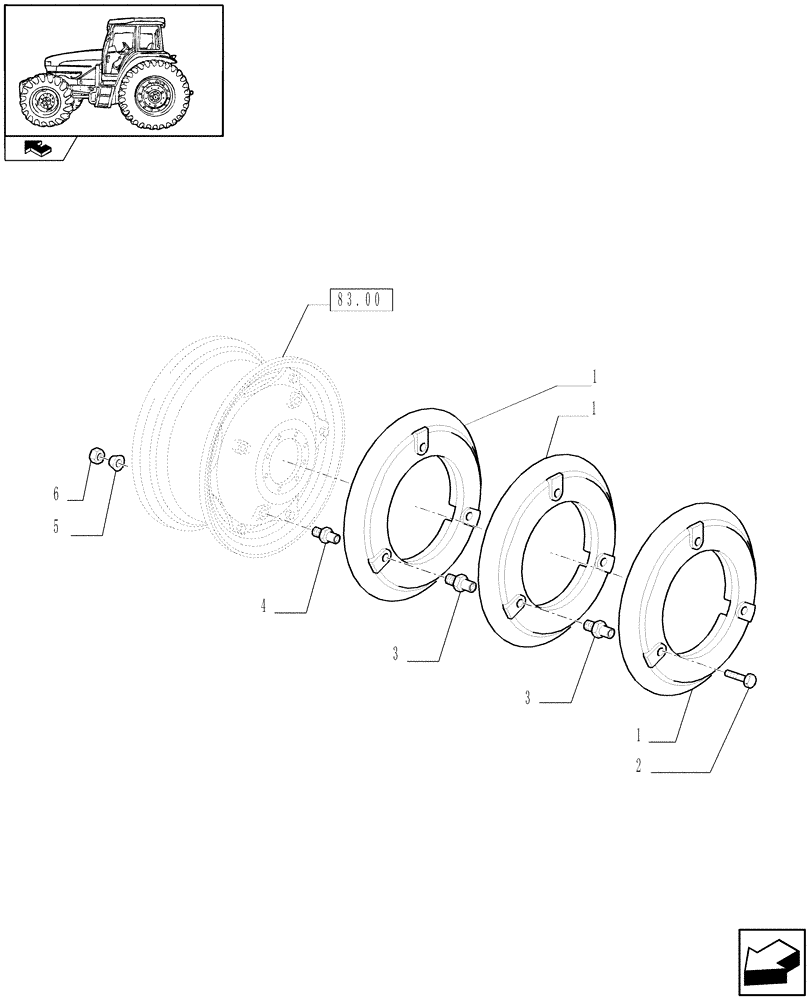

Запчасти Case IH FARMALL 95U (1.48.2) - REAR BALLAST (VAR.330470-330471-331471) (05) - REAR AXLE

1

47131052

WHEEL WEIGHT,50Kg/110Lb

KG 50/LB 110

1шт.

Qty.6 for VAR.330471

1шт.

3 bolts on circle =410MM

1шт.

Qty.4 for VAR.330470

1шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

M16 x 78

1шт.

Qty.12 for VAR.330471

1шт.

Qty.6 for VAR.330470

1шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

M16 x 60

6шт.

5

12164124

NUT,M16 x 1.5, Cl 8

6шт.

6

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.
