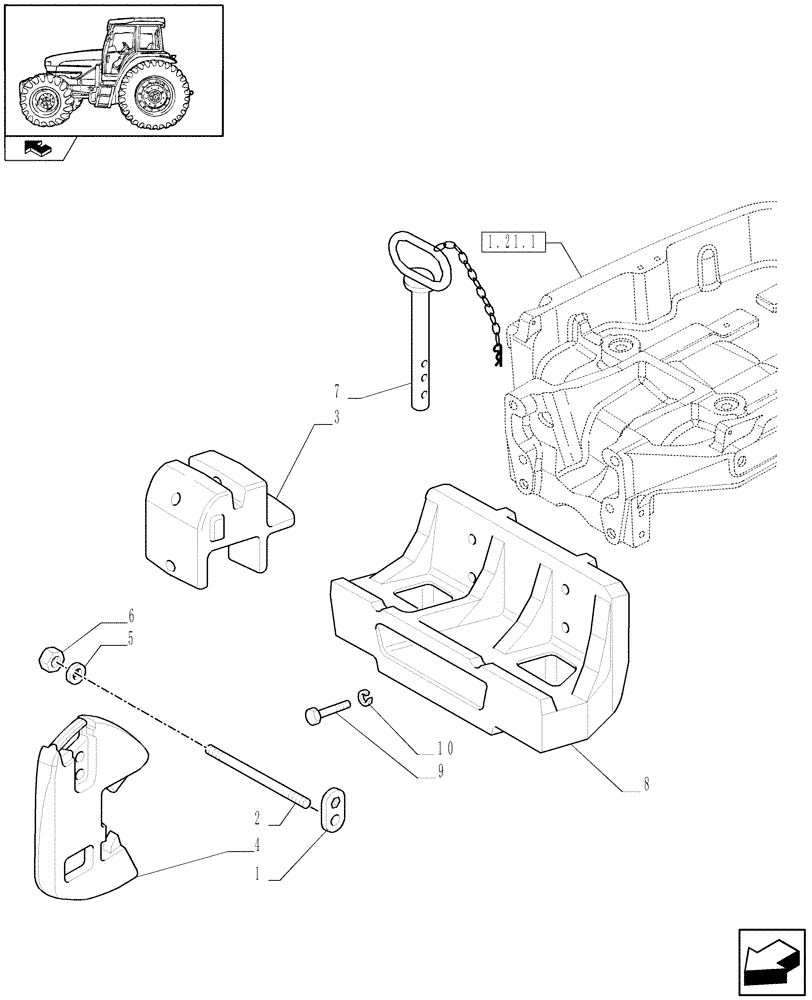

Запчасти Case IH FARMALL 95U (1.44.0/01) - FRONT SUPPORT AND BALLAST (VAR.330226-330227-330476-330477) (04) - FRONT AXLE & STEERING

1

44995007

CLAMP,Grey

PLATE

1шт.

2

82028306

THREADED ROD,M16 x 2 x 385mm L

M16x2x385

1шт.

Front Carrier and 6 Weights, VAR.330476

1шт.

2

87694188

ROD

M16x2x635

1шт.

3

82024272

SUPPORT,110Kg

(VAR. 240-241)

1шт.

4

86988727

WEIGHT,45Kg

45 KG/100LBS

1шт.

Qty. 2 for VAR.330476; Qty. 6 for VAR.330226-330477; Qty. 10 for VAR.330227

1шт.

5

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

16x40x5

1шт.

6

12163321

NUT,M16, Cl 10

2шт.

7

47132417

PIN,3.6mm OD x 64mm L

(VAR. 240-241)

2шт.

Front Carrier and Hook, VAR.330476-330477

1шт.

8

47123977

SUPPORT

1шт.

9

11125624

SCREW,Hex, M20 x 95mm, Cl 8.8

4шт.

10

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20MM

4шт.
