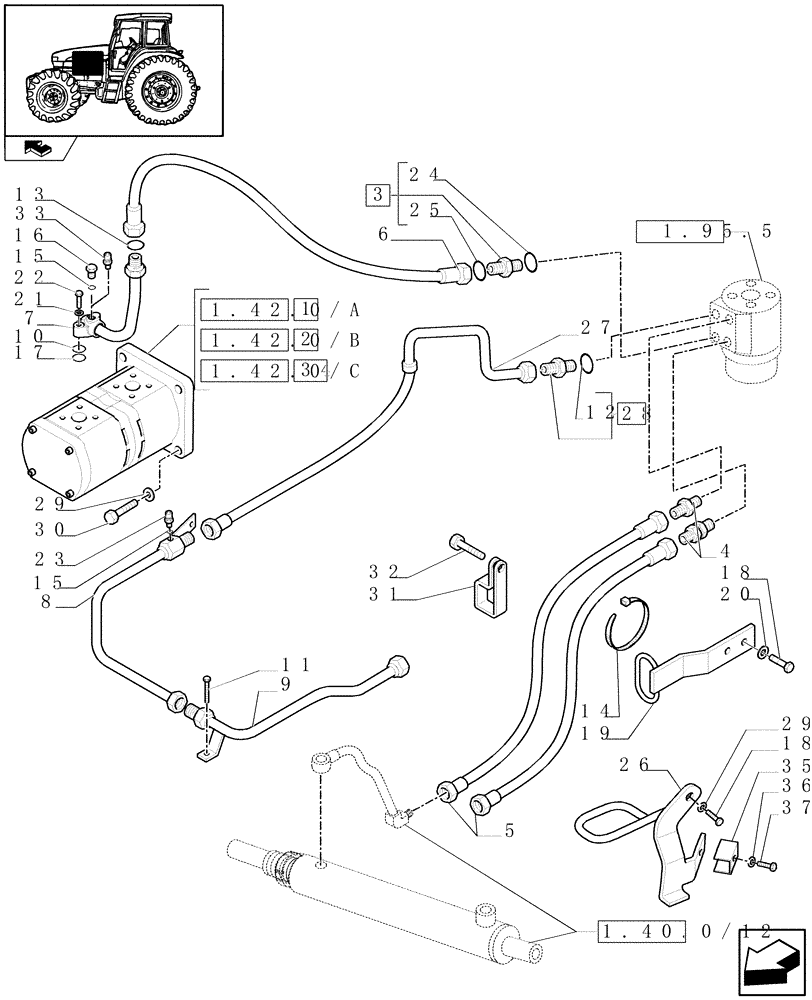

Запчасти Case IH FARMALL 95U (1.42.0) - POWER STEERING HYDRAULIC CONTROL - PIPES & BRACKETS (04) - FRONT AXLE & STEERING

1

87386049

HYDRAULIC PUMP,DOUBLE, 25.45 CC + 14.62 CC

61l/min, Serial Range: -C5996

1шт.

1

87472285R

REMAN-HYD PUMP

61l/min

1шт.

1

87472285C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

47129337

HYDRAULIC PUMP,DOUBLE, 19.55 CC + 11.26 CC

45l/min, VAR.330689

1шт.

2

47129337R

REMAN-HYD PUMP

FARMALL 85U, FARMALL 95U, FARMALL 105U All (1/08-)

1шт.

2

47129337C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

1шт.

4

82002496

HYD CONNECTOR,M18 x 1.5 ORFS x 9/16" - 18 JIC

2шт.

4

82002234

VALVE, PRESSURE CONT

Pressure Bias Valve

1шт.

5

5179199

HOSE,8mm ID x 1800mm L, SAE 100R1

2шт.

5

47136286

HOSE,8mm ID x 1970mm L, SAE 100R2

2шт.

VAR.337401, 2WD

1шт.

6

87375507

HYDRAULIC HOSE,13mm ID x 850mm L, SAE 100R2

1шт.

7

47132339

TUBE

1шт.

8

47132011

HYD TUBE

1шт.

9

47129785

HYD TUBE

1шт.

10

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

11

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

15

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

16

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

17

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24 mm

1шт.

18

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

19

47133632

BRACKET

1шт.

20

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

2шт.

21

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

22

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

23

87395493

PRESSURE SWITCH

Safety, Steering Circuit

1шт.

24

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

26

87598642

BRACKET

1шт.

27

47129777

HYD TUBE

1шт.

28

5197495

HYD CONNECTOR

M22 x 1.5

1шт.

29

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

30

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

4шт.

31

47136277

CLAMP

1шт.

VAR.337401, 2WD

1шт.

32

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

VAR.337401, 2WD

1шт.

33

47134924

PRESSURE SWITCH

1шт.

VAR.339380, Rear Mechanical Diff. Lock for 2WD

1шт.

34

87472285

HYDRAULIC PUMP,DOUBLE, 25.45 CC + 14.62 CC

ASSY, Start Serial: D5996

1шт.

34

87472285R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

34

87472285C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP (FARMALL MODELS)

1шт.

35

5170599

BRACKET

1шт.

36

12601270

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, PLN

1шт.

37

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.
