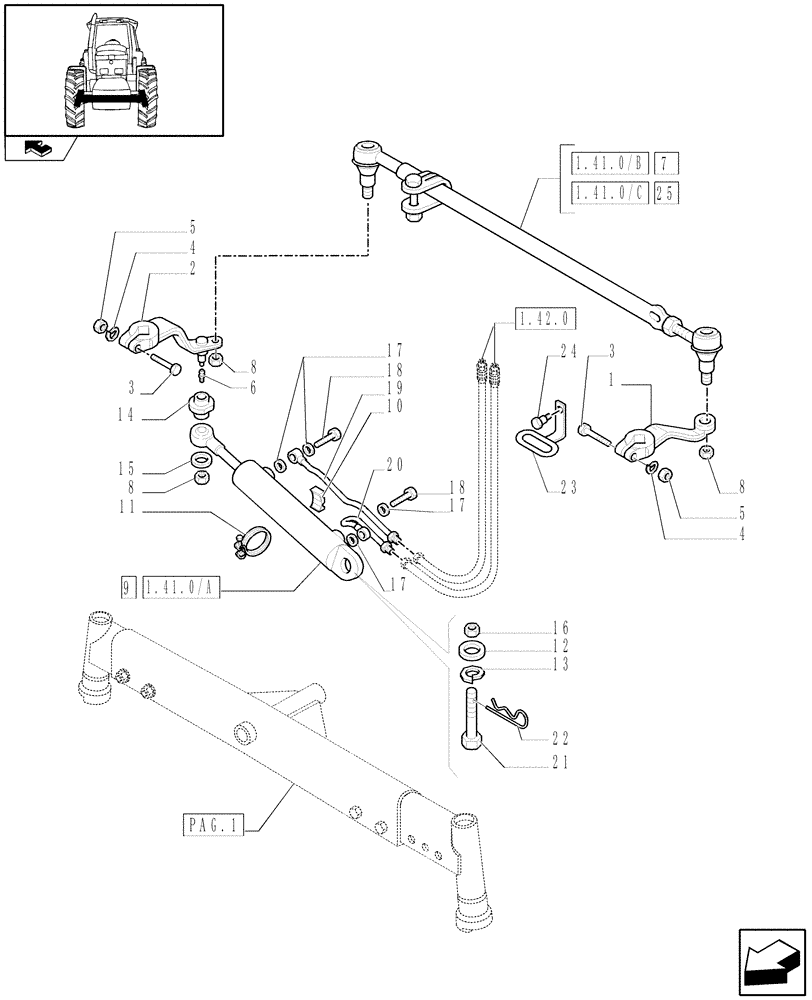

Запчасти Case IH FARMALL 95U (1.41.0[02]) - 2WD FRONT AXLE - STEERING ROD & PIPES (VAR.330403) (04) - FRONT AXLE & STEERING

1

5166080

STEERING ARM

LH

1шт.

2

87621271

LEVER

RH

1шт.

3

15862131

BOLT,Hex, M14 x 1.5 x 80mm, Cl 10.9

2шт.

4

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

5

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

6

87414

LUBE NIPPLE,1/4" - 28

2шт.

7

5178665

TRACK ROD ASSY

, Serial Range: -C6086

1шт.

8

12575921

NUT,M16 x 1.5, Cl 05

3шт.

9

5189893

STEERING CYLINDER,Double Acting, 22mm Rod, 225mm Stroke

1шт.

10

5121043

SPACER

1шт.

11

13000990

COLLAR,60mm - 80mm, Worm Gear

60÷80

1шт.

12

5168900

WASHER,18.2mm ID x 26mm OD x 4mm Thk

D=18

1шт.

13

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

1шт.

14

87621273

BUSHING,20mm ID x 50mm OD x 32mm L

1шт.

15

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

1шт.

16

10724621

SLOTTED NUT,Hex, M18 x 1.5, R80 ZND

M18

1шт.

17

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14 x 20 x 1.5

4шт.

18

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

19

87746020

RIGID TUBE,10 mm DIA x 292, 32 mm L

1шт.

20

87746005

RIGID TUBE

1шт.

21

5175430

PIN,20mm OD x 88mm L

1шт.

22

300595

COTTER PIN,M4 x 40

1шт.

23

87746023

SUPPORT

1шт.

24

87746024

SET SCREW,Hex, M8

M8

1шт.

25

87480794

TRACK ROD ASSY

, Start Serial: D6086

1шт.
