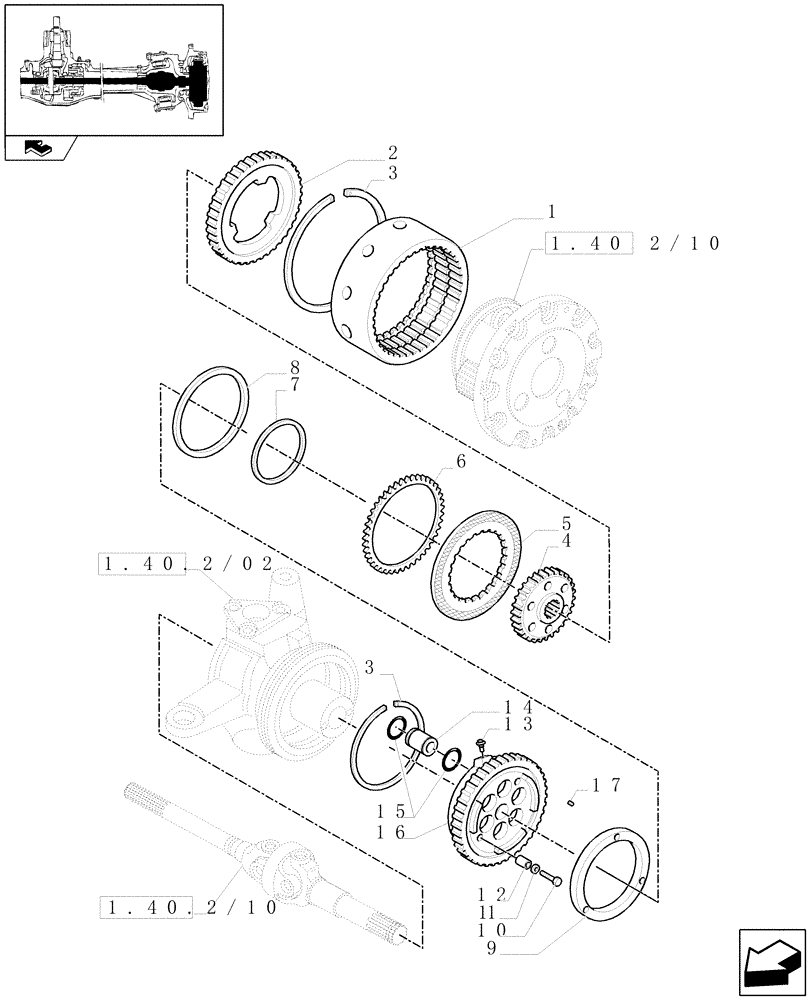

Запчасти Case IH FARMALL 95U (1.40.2/14[01]) - FRONT AXLE WITH DIFFERENTIAL LOCK AND BRAKES - BRAKE PARTS (VAR.330415) (04) - FRONT AXLE & STEERING

1

87383413

RING GEAR

2шт.

2

87383418

BRAKE DISC,120mm ID x 221mm OD x 11.8mm Thk

Wear

2шт.

3

87383414

SNAP RING

2шт.

4

87383415

HUB

2шт.

5

87383417

BRAKE DISC,135.38mm ID x 170mm OD x 4.5mm Thk, 54T

2шт.

6

87383416

BRAKE DISC,150 mm ID x 221 mm OD x 3 mm Thk, 72T

2шт.

7

5171919

SEAL,Square, 3.4mm Thk x 193.6mm ID, 80 Duro

Internal

2шт.

8

5181734

PISTON RING

External

2шт.

9

5181732

PISTON,167.23mm ID x 193.77mm OD x 13mm Thk

2шт.

10

16323830

BOLT,Hex, M10 x 1.25 x 45mm

14шт.

11

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

14шт.

12

87389673

BUSHING,10.5mm ID x 17mm OD x 22.8mm L

14шт.

13

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

14

5173504

PAWL,16mm OD x 25mm L

2шт.

15

14456981

O-RING,0.424" ID x 0.103" Width

4шт.

16

87395229

BELL HOUSING

2шт.
