Запчасти Case IH FARMALL 95U (1.40.2/06[01]) - FRONT AXLE WITH DIFFERENTIAL LOCK AND BRAKES - RONT AXLE - BEVEL GEAR/PINION SET (VAR.330415) (04) - FRONT AXLE & STEERING

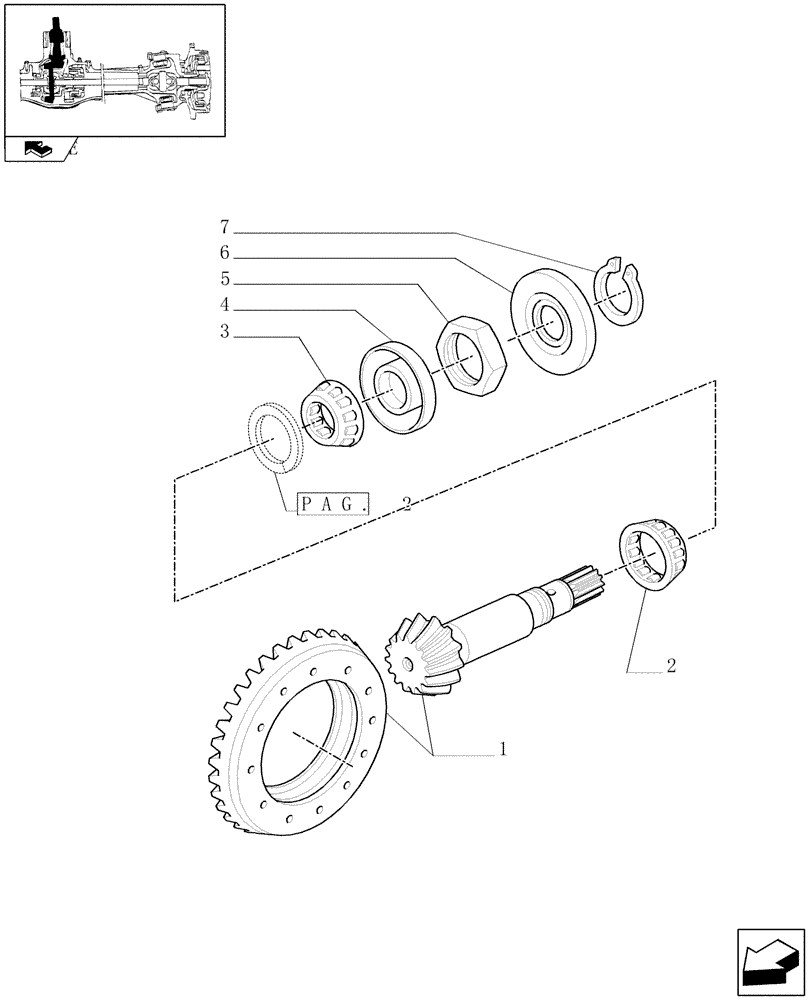

Схема запчастей Case IH FARMALL 95U - (1.40.2/06[01]) - FRONT AXLE WITH DIFFERENTIAL LOCK AND BRAKES - RONT AXLE - BEVEL GEAR/PINION SET (VAR.330415) (04) - FRONT AXLE & STEERING
4
3
1
5
2
home
pag. 2
6
7

Артикул

Название

Примечание

Количество

1

87668856

BEVEL GEAR

13/36

1шт.

2

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

41.275 x 82.550 x 26.543

1шт.

3

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

35 x 72 x 18.25

1шт.

4

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

32.5 x 75 x 14.5/15

1шт.

5

5143242

RING NUT,M35 x 1.5

M35 x 19.5

1шт.

6

87527839

SEAL PROTECTION,33mm ID x 76mm OD x 6mm Thk

45 x 75 x 10/12

1шт.

7

11067776

SNAP RING,M29, Ext

1шт.

Выбрано товаров: 7
