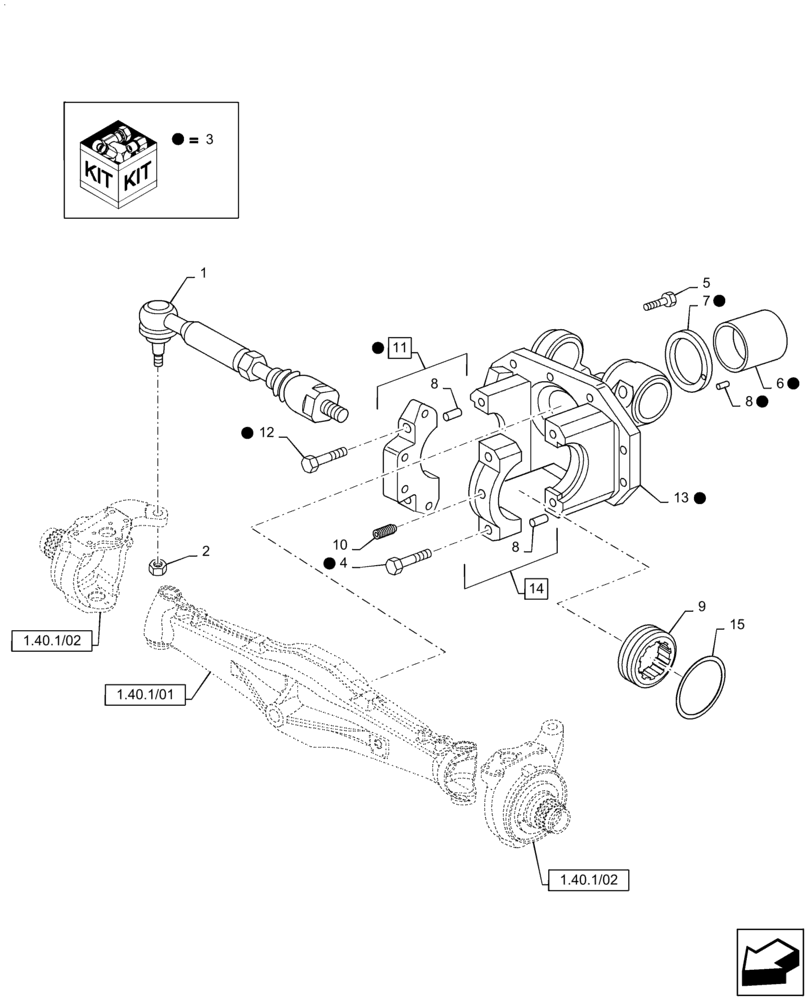

Запчасти Case IH FARMALL 95U (1.40.1/05) - FRONT AXLE WITH DIFFERENTIAL LOCK - SUPPORT AND ROD (VAR.330308) (04) - FRONT AXLE & STEERING

1

87583742

TIE-ROD

2шт.

2

12577011

NUT,M20 x 1.5, Cl 8

2шт.

3

87660415

SUPPORT

ASSY

1шт.

4

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

5

11394334

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

12шт.

6

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

7

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

8

4966244

PIN,5mm OD x 15mm L

5шт.

9

4966240

BEARING LOCK NUT,M95 x 2, 15T

1шт.

10

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

11

NSS

NOT SOLD SEPARAT

Keep, Incl in 3

1шт.

12

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

2шт.

13

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

14

NSS

NOT SOLD SEPARAT

Keep, Incl in 3

1шт.

15

5167750

SHIM,0.90mm Thk

1шт.

15

5167751

SHIM,1.00mm Thk

1шт.

15

5167752

SHIM,1.10mm Thk

1шт.

15

5167753

SHIM,1.20mm Thk

1шт.

15

5167754

SHIM,1.30mm Thk

1шт.

15

5167755

SHIM,1.40mm Thk

1шт.

15

5167756

SHIM,1.50mm Thk

1шт.

15

5167757

SHIM,1.60mm Thk

1шт.

15

5167758

SHIM,1.70mm Thk

1шт.

15

5167759

SHIM,1.80mm Thk

1шт.

15

5167760

SHIM,1.90mm Thk

1шт.

15

5167761

SHIM,2.00mm Thk

1шт.
