Запчасти Case IH FARMALL 95U (1.40.1/03[01]) - FRONT AXLE WITH DIFFERENTIAL LOCK - SLEEVES AND COVER PLATE (VAR.330308) (04) - FRONT AXLE & STEERING

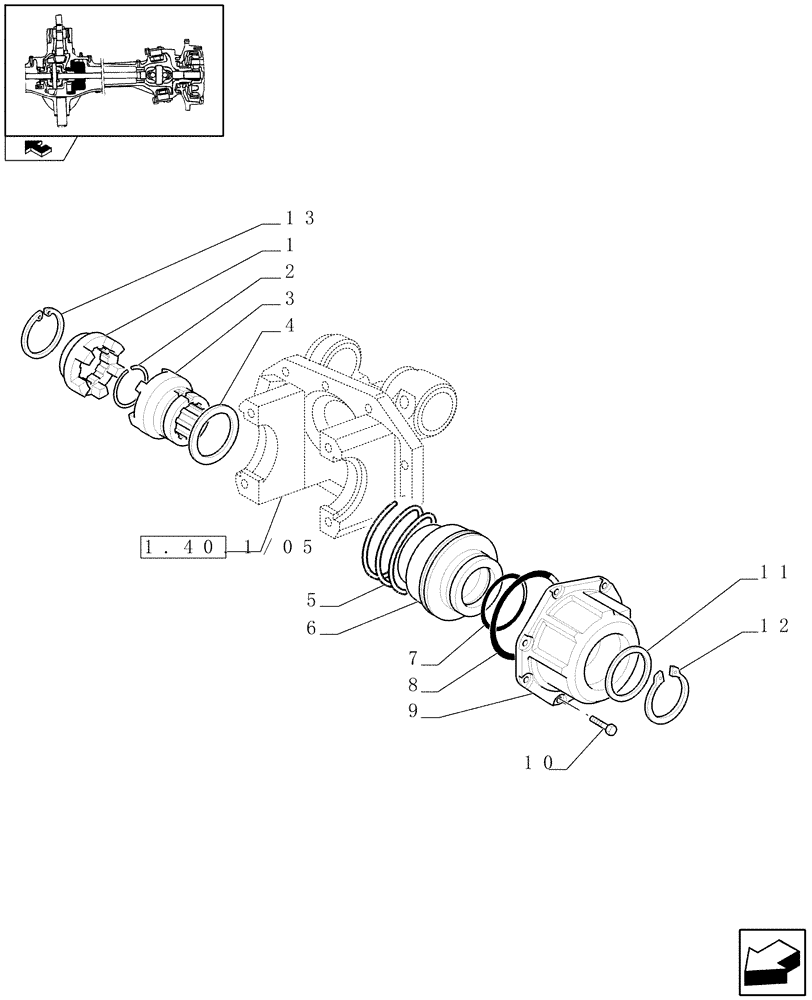

Схема запчастей Case IH FARMALL 95U - (1.40.1/03[01]) - FRONT AXLE WITH DIFFERENTIAL LOCK - SLEEVES AND COVER PLATE (VAR.330308) (04) - FRONT AXLE & STEERING
11
4
13
1.40.1/05
7
2
1
5
9
6
10
home
12
8
3

Артикул

Название

Примечание

Количество

1

5167764

SLEEVE,50mm ID x 80mm OD x 29mm L

1шт.

2

5167721

SNAP RING,M50, Int

1шт.

3

87642726

SPLINED COUPLING,10T

Slider

1шт.

4

5167763

THRUST WASHER,67.5mm ID x 80mm OD x 2.8mm Thk

1шт.

5

5167827

SPRING,Compression, 110mm OD x 75mm L

1шт.

6

5167749

PISTON

1шт.

7

14465681

O-RING,3.484" ID x 3.762" OD x 0.139"

1шт.

8

14466581

O-RING,117.07mm ID x 4.887" OD x 3.53mm

1шт.

9

47123536

BELL HOUSING

1шт.

10

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

6шт.

11

5167748

THRUST WASHER,65.2mm ID x 80mm OD x 3mm Thk

1шт.

12

11070076

SNAP RING,M65, Ext

1шт.

13

11062476

SNAP RING,M90, Int

D=90mm

1шт.

Выбрано товаров: 13
