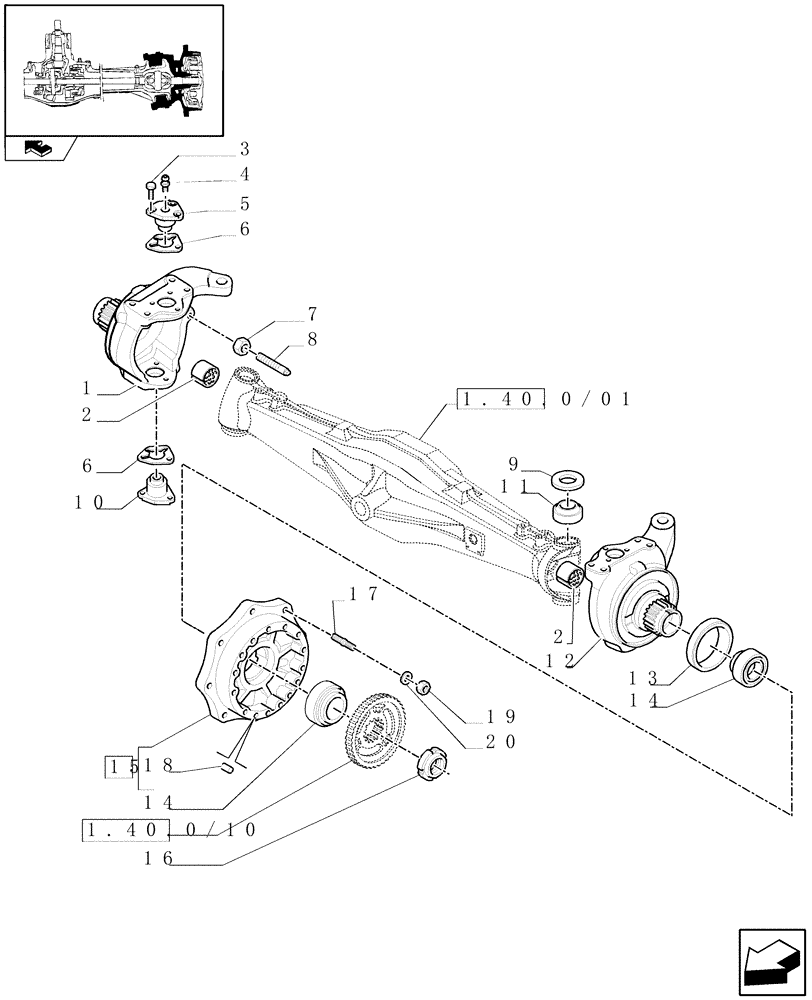

Запчасти Case IH FARMALL 95U (1.40.0/02) - FRONT AXLE - STEERING KNUCKLE AND HUBS (04) - FRONT AXLE & STEERING

1

87374555

STUB AXLE/STEERING S

RH

1шт.

2

87529111

BUSHING,47.1mm ID x 51mm OD x 30mm L

47 x 51 x 30

2шт.

3

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

M10 x 30

12шт.

4

13407211

LUBE NIPPLE,M10 x 1

10 x 1

4шт.

5

87383399

PIN

UPPER

2шт.

6

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

6

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

6

5100791

SHIM,.20mm Thk

1шт.

6

5100792

SHIM,.25mm Thk

1шт.

7

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

8

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

9

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

50 x 62 x 7

4шт.

10

87383400

PIN

LOWER

2шт.

11

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

28 x 52 x 16

4шт.

12

87374543

STUB AXLE/STEERING S,LH

LH

1шт.

13

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

150X180X14.5-16

2шт.

14

5136951

TAPERED BEARING,95mm ID x 135mm OD x 20mm W

95 x 135 x 20

4шт.

15

87667229

HUB

2шт.

16

5142020

NUT,Hex, M75 x 2

2шт.

17

87618916

STUD,M16 x 1.5 x 72mm L

16шт.

18

4985063

DOWEL,12mm OD x 20mm L

12 x 20

4шт.

19

12164121

NUT,M16 x 1.5, Cl 10

16шт.

20

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.
