Запчасти Case IH FARMALL 95U (1.38.5/01) - 4WD WATER PROOF TRANSMISSION - SLEEVES AND SUPPORTS (VAR.330448) (04) - FRONT AXLE & STEERING

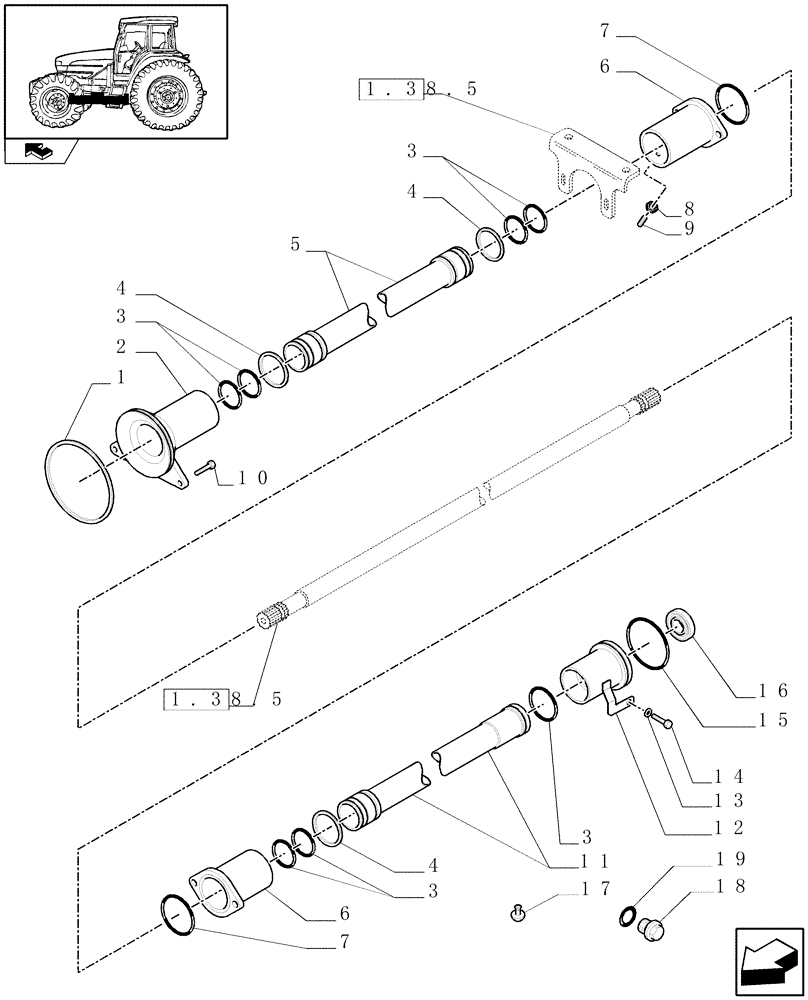

Схема запчастей Case IH FARMALL 95U - (1.38.5/01) - 4WD WATER PROOF TRANSMISSION - SLEEVES AND SUPPORTS (VAR.330448) (04) - FRONT AXLE & STEERING
7
3
6
9
4
19
5
4
10
1.38.5
1.38.5
3
18
1
4
8
home
11
16
3
15
3
12
13
14
7
2
17
6

Артикул

Название

Примечание

Количество

1

14461480

O-RING,4.237" ID x 0.103" Thk

1шт.

2

47124556

SLEEVE,57mm ID x 66mm OD x 104.0mm L

1шт.

3

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

7шт.

4

11069676

SNAP RING,M56, Ext

56MM

3шт.

5

87619124

SHIELD

1шт.

6

87534292

FLANGE

2шт.

7

14460480

O-RING,2.612" ID x 2.818" OD x .103"

2шт.

8

10791021

THIN NUT,Thin, M10 x 1.25, Cl 05

2шт.

9

13809631

SET SCREW,Hex Soc, M10 x 20mm, Flat Pt

2шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

87619121

SHIELD

1шт.

12

47129888

BUSHING

1шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8 x 16 x 1.4

2шт.

14

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

15

14460980

O-RING,75.87mm ID x 2.62" Width

1шт.

16

5180916

GASKET,35mm ID x 52mm OD x 7mm Thk

35 x 52 x 10

1шт.

17

5145574

PLUG,M7 X 12.5mm

D=7

1шт.

18

5198705

PLUG

M20x2.5

4шт.

19

10261760

COPPER WASHER,20mm ID x 28mm OD x 1.5mm Thk

4шт.

Выбрано товаров: 19
