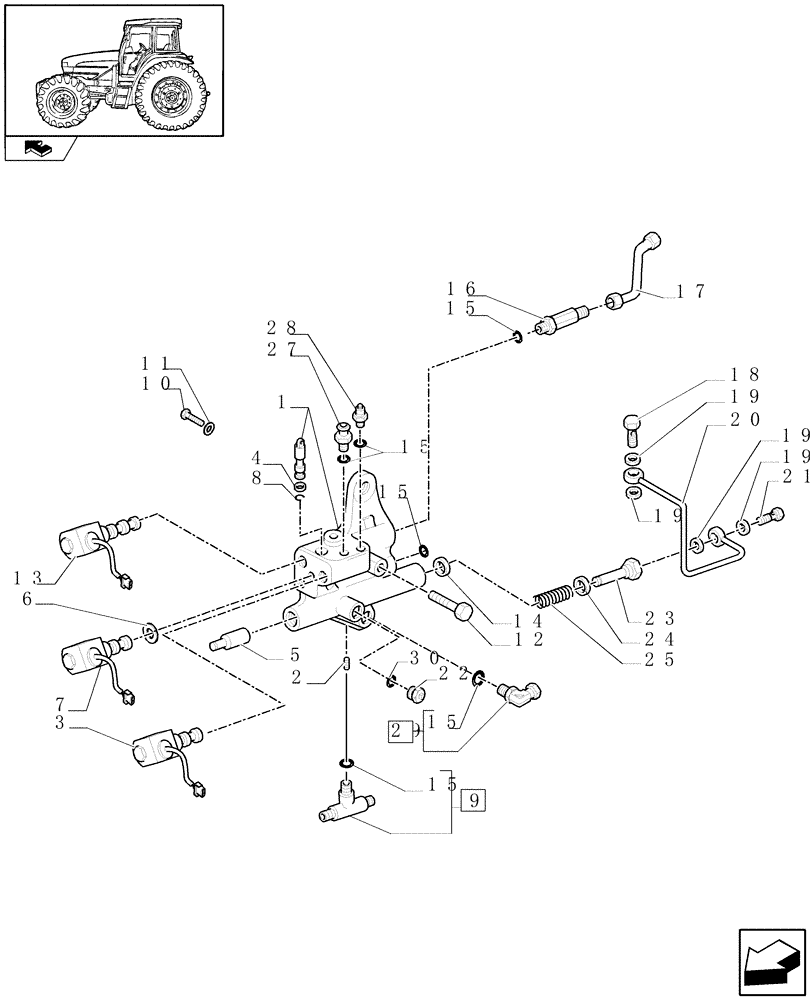

Запчасти Case IH FARMALL 95U (1.33.2/08) - 4WD DIFFERENTIAL LOCK FOR HYDR. PTO LESS GROUND SPEED - SOLENOID VALVES & SUPP. (VAR.333380-334380) (04) - FRONT AXLE & STEERING

1

5174714

SUPPORT

1шт.

VAR.334380

1шт.

1

5174903

SUPPORT

1шт.

VAR.333380

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

7шт.

3

87681749

SOLENOID VALVE,4W/2P w/ Diode, 12V-19W

PTO

1шт.

4

5137965

SCRAPER RING

1шт.

5

5169220

HYDRAULIC VALVE

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

87681738

SOLENOID VALVE,3W/2P w/ Diode, 12V-19W

4WD

1шт.

8

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

9

87616144

HYD CONNECTOR

1шт.

10

5166386

SET SCREW,M6 x 1 x 11.5mm, Cl 8.8

1шт.

11

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

12

5166320

BOLT,Hex, M12 x 1.25 x 105mm, Cl 8.8

M12 x 105

1шт.

13

87681748

SOLENOID,1.5A, 3W/2P

Diff. Lock

1шт.

14

13550101

WASHER

D=5

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

5шт.

16

5162919

EXTENSION

1шт.

17

5162915

TUBE

1шт.

VAR.333380

1шт.

18

11903817

BANJO BOLT

1шт.

VAR.333380

1шт.

19

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

10 x 16 x 1.5

4шт.

VAR.333380

1шт.

20

5169701

TUBE

1шт.

VAR.333380

1шт.

21

5169835

BANJO BOLT

1шт.

VAR.333380

1шт.

22

5174927

PLUG

1шт.

VAR.334380

1шт.

23

5196410

PLUG

1шт.

24

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20 x 26 x 1.5

1шт.

25

5157119

SPRING,11.5mm x 127mm

1шт.

27

5174063

HYD CONNECTOR,1/2-14, M18 x 1.5

M18 x 1.5, 1/2"-20

1шт.

28

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

M18 x 1.5, 3/4"-16

1шт.

29

87687953

HYD CONNECTOR

M18 x 1.5, 7/8"-14

1шт.

30

14438185

O-RING,24mm ID x 3mm

1шт.
