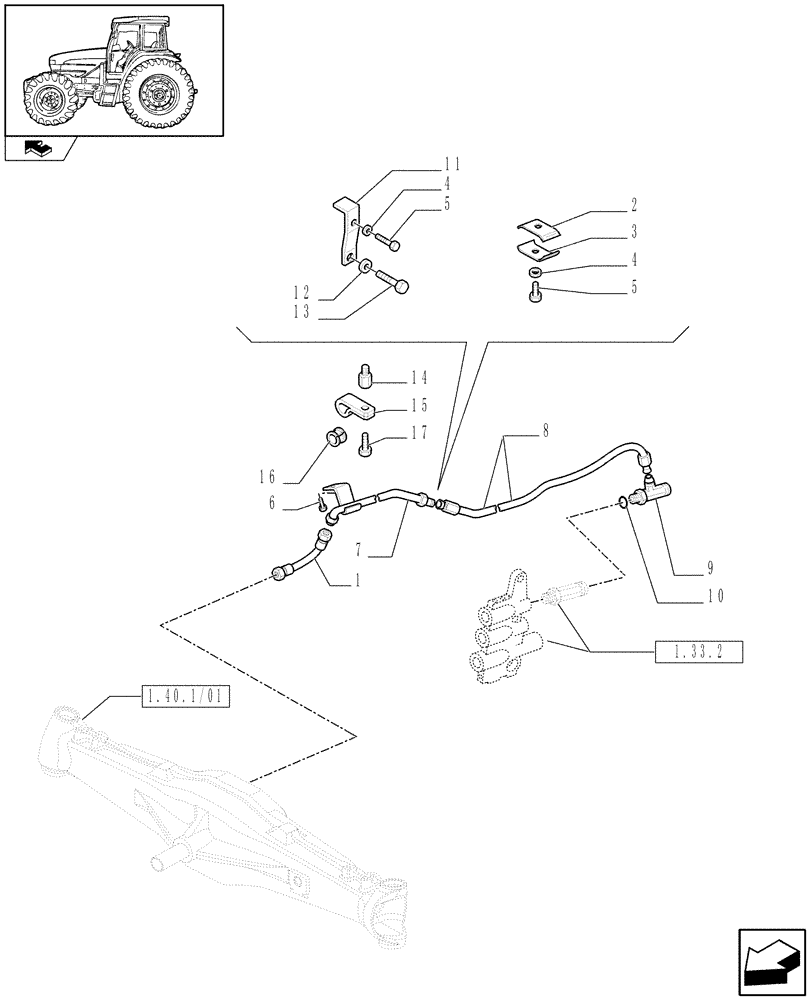

Запчасти Case IH FARMALL 95U (1.33.2/03) - FRONT AXLE WITH DIFFERENTIAL LOCK - HYDRAULIC LINES - PIPES (VAR.330308) (04) - FRONT AXLE & STEERING

1

87657413

RIGID TUBE,9.5 mm ID x 600 mm L

1шт.

2

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

1шт.

3

5193550

CLAMP,6.5mm ID

1шт.

4

10516474

LOCK WASHER

D=6

4шт.

5

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

3шт.

6

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

7

47132740

HYD TUBE

, Serial Range: -C6228

1шт.

7

84152240

HYD TUBE,12 mm OD

, Start Serial: D6228

1шт.

8

47129798

HYD TUBE

1шт.

9

5157558

TEE,M18 x 1.5 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5174101

BRACKET

1шт.

12

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

13

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

14

5198397

SPACER

1шт.

15

4951136

CLAMP

1шт.

16

5118182

RING

1шт.

17

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.
