Запчасти Case IH FARMALL 95U (1.33.2/02) - IDLER CONTROLS FOR POWER SHUTTLE TRANSMISSION - PIPES (04) - FRONT AXLE & STEERING

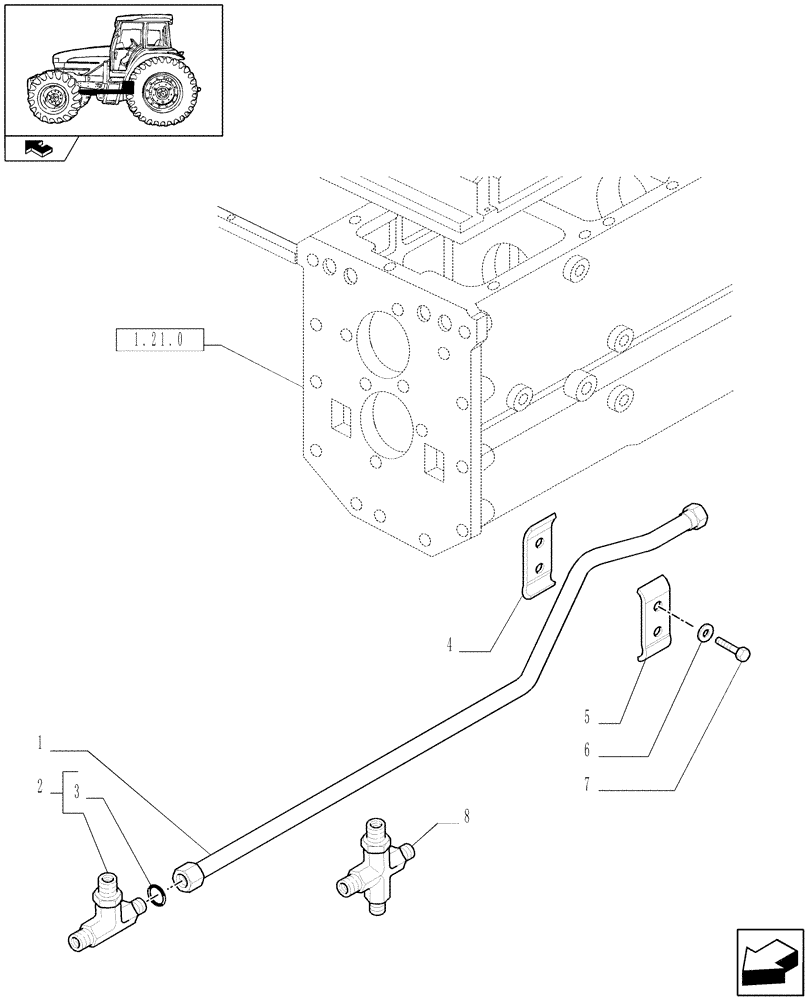

Схема запчастей Case IH FARMALL 95U - (1.33.2/02) - IDLER CONTROLS FOR POWER SHUTTLE TRANSMISSION - PIPES (04) - FRONT AXLE & STEERING
2
1.21.0
7
5
4
8
6
3
home
1

Артикул

Название

Примечание

Количество

1

5182903

HYD TUBE

To Electric Valve

1шт.

2

5181597

TEE

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

5174103

BRACKET

1шт.

5

5174102

BRACKET

2шт.

6

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

7

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

8

87378726

HYD CONNECTOR

1шт.

VAR.332632, 80L Combined Valve

1шт.

Выбрано товаров: 9
