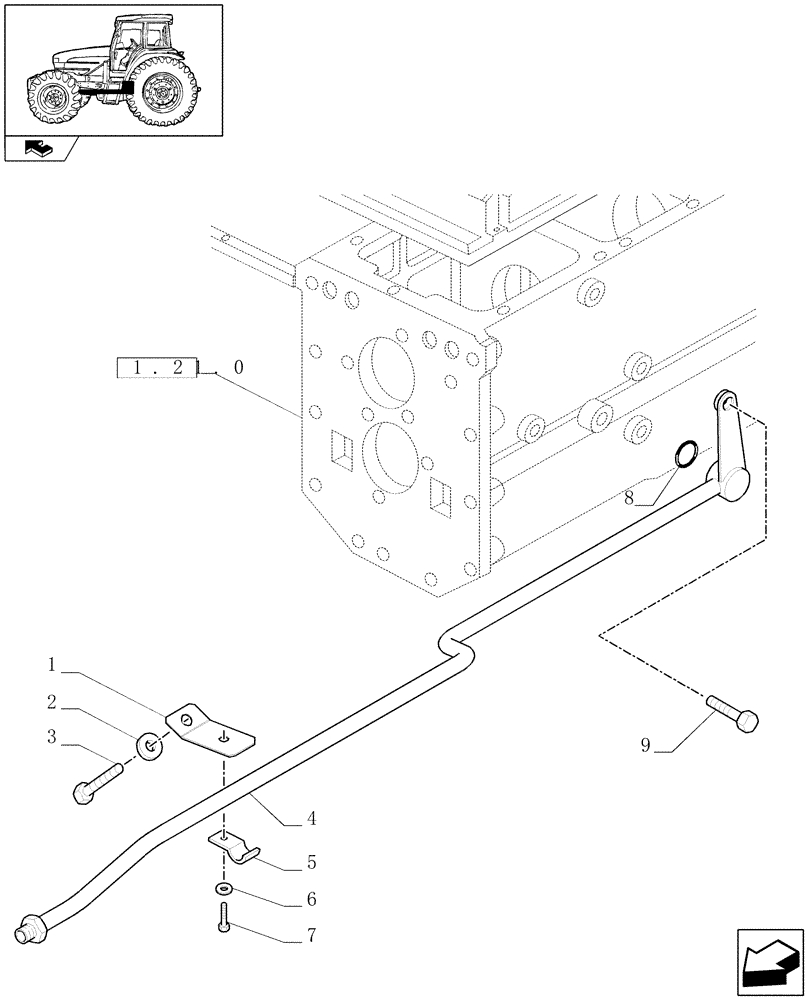

Запчасти Case IH FARMALL 95U (1.33.2/01) - IDLER CONTROLS FOR REAR MECH. DIFF. LOCK - PIPES (04) - FRONT AXLE & STEERING

1

87624532

BRACKET

1шт.

2

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

3

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

4

87617703

RIGID TUBE,16 mm OD

From Steering Motor

1шт.

4

87617705

RIGID TUBE,16 mm OD

VAR.330632

1шт.

5

5178447

BRACKET

1шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

9

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.
