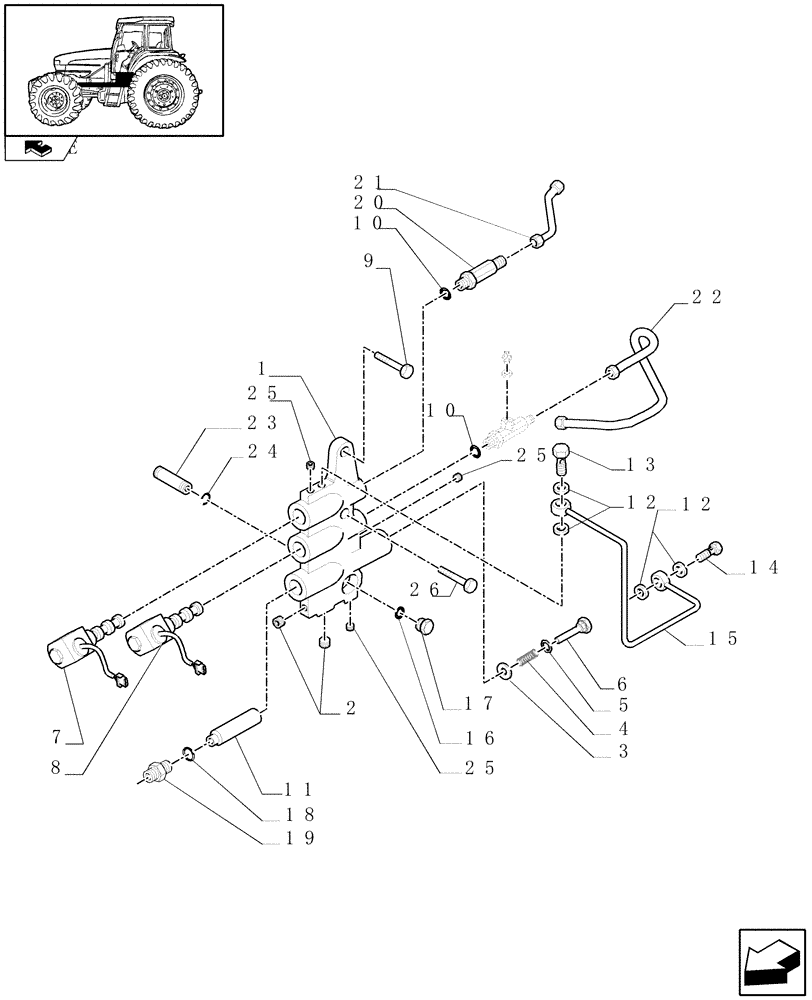

Запчасти Case IH FARMALL 95U (1.33.2[01]) - IDLER CONTROLS - PIPES & SOLENOID VALVES (04) - FRONT AXLE & STEERING

1

5174901

VALVE

1шт.

2

10269501

PLUG,M14 x 1.5

14 x 1.5

2шт.

3

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

5 x 11

1шт.

4

5157119

SPRING,11.5mm x 127mm

1шт.

5

10257460

SEAL,M20.3 x 26 x 1.5

1шт.

6

5196410

PLUG

1шт.

7

87681748

SOLENOID,1.5A, 3W/2P

Diff. Lock

1шт.

8

87681738

SOLENOID VALVE,3W/2P w/ Diode, 12V-19W

4WD

1шт.

9

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

11

5169220

HYDRAULIC VALVE

Maximum Pressure

1шт.

12

10298360

SEALING WASHER,M10.2 x 16 x 1, Copper

4шт.

13

11903811

BANJO BOLT

1шт.

14

5169835

BANJO BOLT

1шт.

15

5169701

TUBE

1шт.

16

14438185

O-RING,24mm ID x 3mm

1шт.

17

5174927

PLUG

1шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

19

87542115

HYD CONNECTOR

1шт.

20

5162919

EXTENSION

1шт.

21

5162915

TUBE

3/4"-16

1шт.

22

87395974

TUBE,12 mm OD

4WD Delivery, 3/4"-16 / 12

1шт.

23

5174926

PIPE COUPLING

1шт.

24

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

25

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

3шт.

26

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.
