Запчасти Case IH FARMALL 95U (1.29.1[02]) - 40KM/H 12X12 FOR LIGHT DUTY REAR TRANSMISSION - SPEED GEARSHIFT MECHANISM - LEVERS AND TIE-RODS (03) - TRANSMISSION

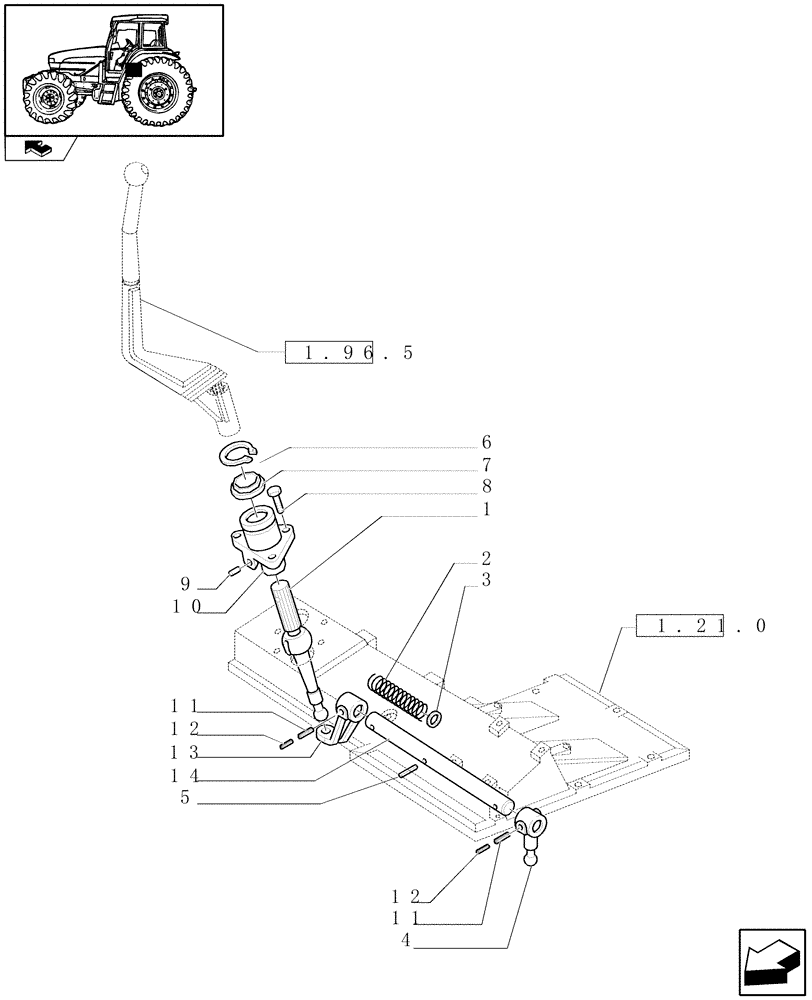

Схема запчастей Case IH FARMALL 95U - (1.29.1[02]) - 40KM/H 12X12 FOR LIGHT DUTY REAR TRANSMISSION - SPEED GEARSHIFT MECHANISM - LEVERS AND TIE-RODS (03) - TRANSMISSION
11
10
1
9
12
8
13
11
1.96.5
1.21.0
3
5
12
2
4
14
home
7
6

Артикул

Название

Примечание

Количество

1

47134074

LEVER

1шт.

2

5127962

SPRING

1шт.

3

5132334

SPACER,22.1mm ID x 30mm OD x 11mm L

1шт.

4

5127965

LEVER

1шт.

5

13907670

ROLL PIN,M5 x 30, Coiled

1шт.

6

11059976

SNAP RING,M40, Int

1шт.

7

4984223

SEAL,23mm ID x 40.5mm OD x 9.5mm Thk

1шт.

8

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

9

5125535

DOWEL

2шт.

10

5176076

SUPPORT

1шт.

11

14607270

LOCK PIN,M8 x 40, Slotted

2шт.

12

14601670

LOCK PIN,M5 x 40, Slotted

2шт.

13

5175998

LEVER

1шт.

14

5172876

SHIFT RAIL

1шт.

Выбрано товаров: 14
