Запчасти Case IH FARMALL 95U (1.28.7/05[02]) - 20X12 TRANSMISSION - SPEED DRIVEN SHAFT (VAR.330113-331113) (03) - TRANSMISSION

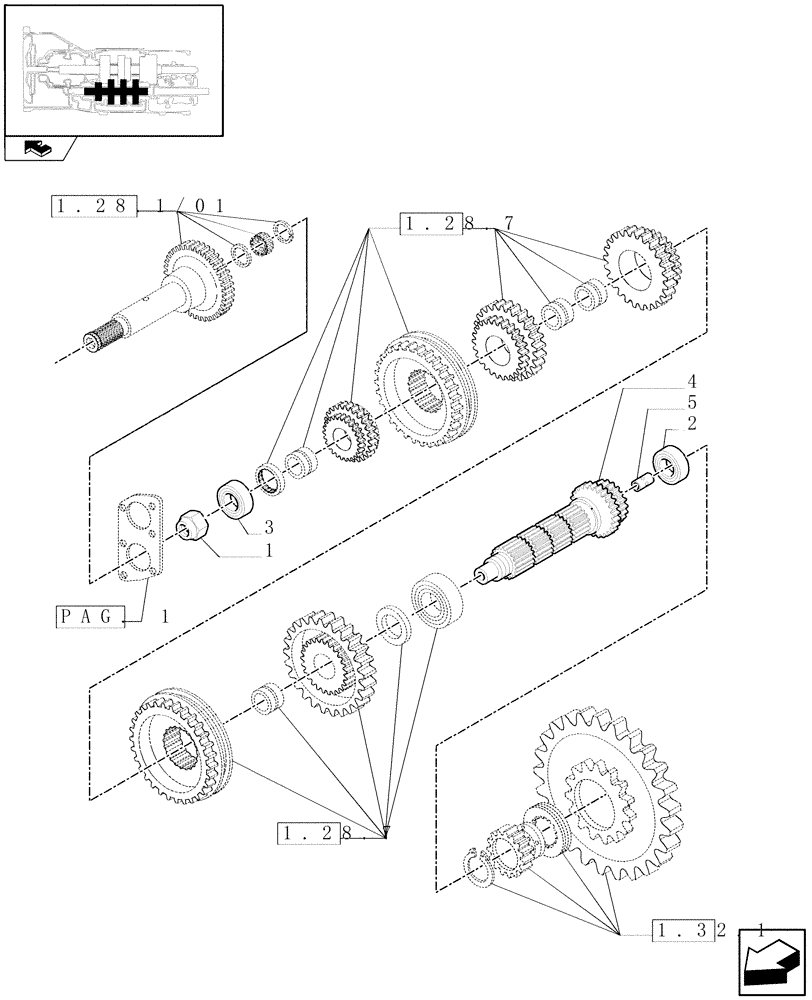

Схема запчастей Case IH FARMALL 95U - (1.28.7/05[02]) - 20X12 TRANSMISSION - SPEED DRIVEN SHAFT (VAR.330113-331113) (03) - TRANSMISSION
3
1.32.1
1.28.7
1.28.1/01
1.28.7
5
4
home
2
pag. 1
1

Артикул

Название

Примечание

Количество

1

5137678

RING NUT

M34 x 14.5

1шт.

2

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

27.5 x 52 x 21

1шт.

3

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

25 x 80 x 21, Serial Range: -Z8JL10652

1шт.

3

87671281

BALL BEARING,35mm ID x 90mm OD x 21mm W

35 x 90 x 21, Serial Range: Z8JL10653-C6604

1шт.

3

84188213

BALL BEARING,35mm ID x 90mm OD x 23mm W

, Start Serial: D6604

1шт.

4

87353282

SHAFT

1шт.

5

5145131

RIGID TUBE

1шт.

Выбрано товаров: 7
