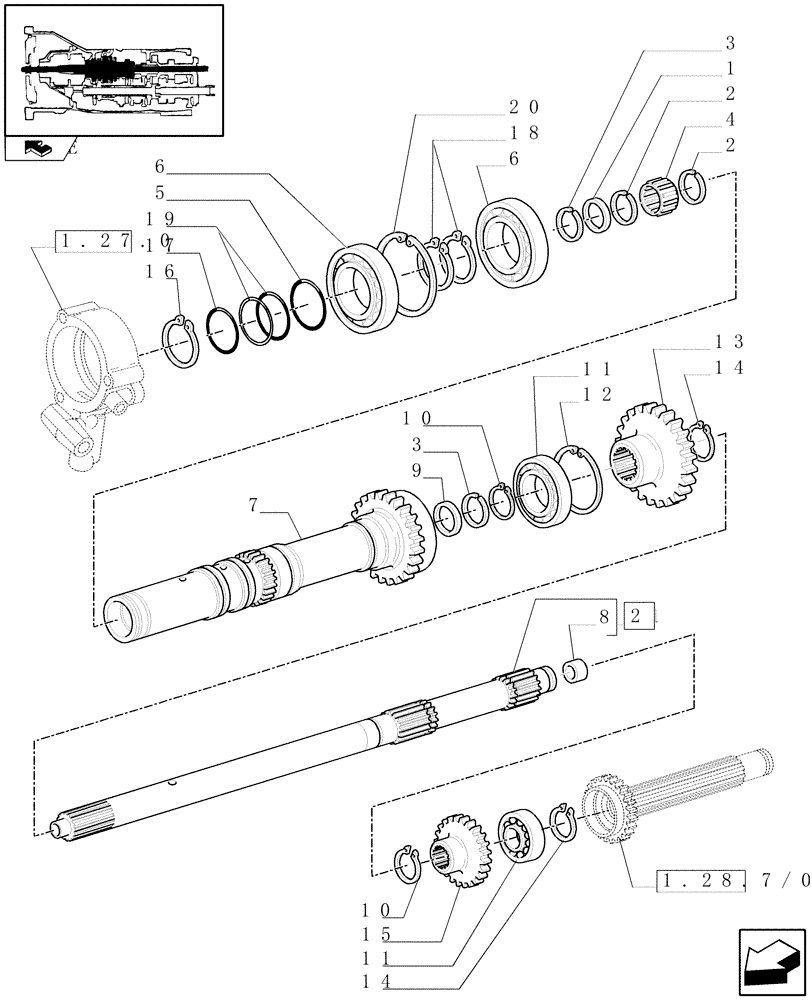

Запчасти Case IH FARMALL 95U (1.28.1/03[01]) - 24X24 HI-LO POWER SHUTTLE TRANSMISSION - REVERSER MAIN SHAFTS AND GEARS (VAR.330279-331279-332279) (03) - TRANSMISSION

1

5168364

SEAL,40mm ID x 47mm OD x 4mm Thk

40 x 47 x 4

1шт.

2

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

D = 45

2шт.

3

5117076

CIRCLIP,M47, Ext

D = 47

2шт.

4

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

40 x 45 x 27

1шт.

5

14464680

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

6

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

65 x 100 x 18

2шт.

7

5181850

SHAFT

1шт.

8

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25 x 28.53 x 18

1шт.

9

5168364

SEAL,40mm ID x 47mm OD x 4mm Thk

40 x 47 x 4

1шт.

10

11068876

SNAP RING,M40, Ext

2шт.

11

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

2шт.

12

11061976

SNAP RING,M80, Int

1шт.

13

5181849

GEAR

Z=34, Hi

1шт.

14

5135061

CIRCLIP,M45, Ext

2шт.

15

5181848

GEAR

Z=34, Low

1шт.

16

11069776

SNAP RING,M58, Ext

1шт.

17

14455180

O-RING,2.114" ID x 0.07" Width

1шт.

18

11070076

SNAP RING,M65, Ext

2шт.

19

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

2шт.

20

11062976

SNAP RING,Int, M100 x 3

1шт.

21

5181836

SHAFT

1шт.
