Запчасти Case IH FARMALL 95U (1.28.1/01[01]) - 20X12 TRANSMISSION - CREEPER AND REVERSER MAIN GEARS (VAR.330113-331113) (03) - TRANSMISSION

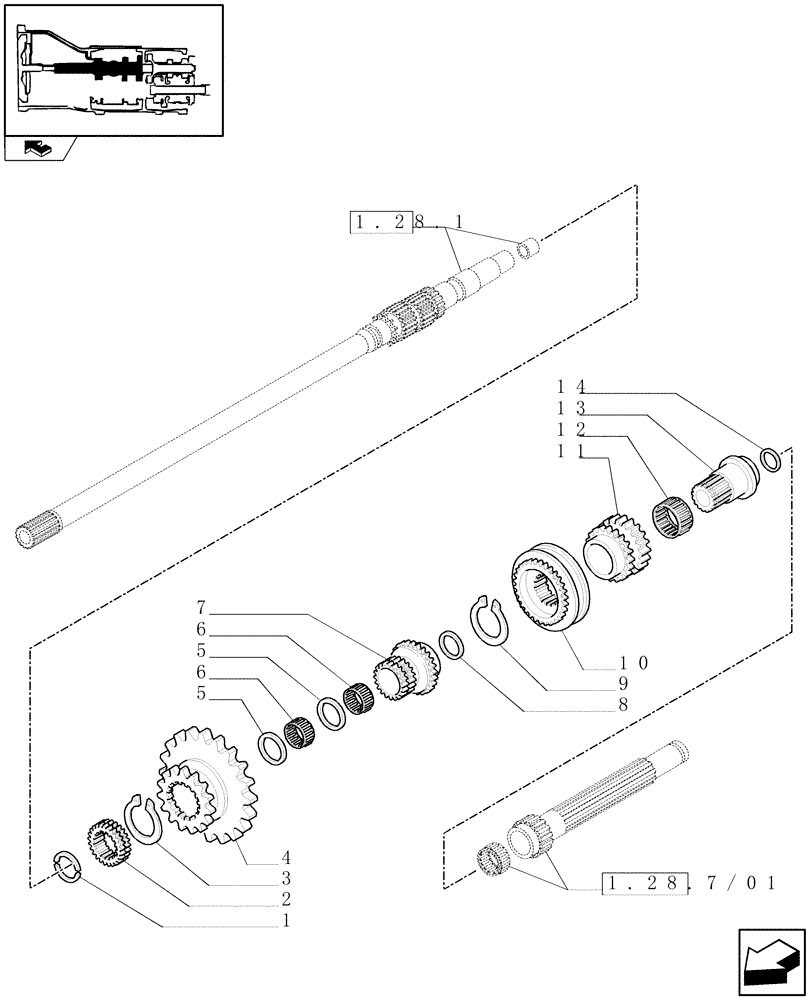

Схема запчастей Case IH FARMALL 95U - (1.28.1/01[01]) - 20X12 TRANSMISSION - CREEPER AND REVERSER MAIN GEARS (VAR.330113-331113) (03) - TRANSMISSION
2
1.28.7/01
1.28.1
6
5
7
1
13
14
10
4
8
6
5
3
12
9
home
11

Артикул

Название

Примечание

Количество

1

5175959

HALF-RING

1шт.

2

5175960

GEAR,16T Internal / 23T External

1шт.

3

11070876

CIRCLIP,M80, Ext

1шт.

4

5175967

GEAR

Creeper

1шт.

5

5160929

SNAP RING,55.3mm OD x 1.5mm Width

D=53

2шт.

6

5160928

NEEDLE BEARING

48 x 53 x 17

2шт.

7

5175962

SPLINED COUPLING

1шт.

8

5182075

WASHER,42.13mm ID x 56mm OD x 4mm Thk

1шт.

9

11070076

SNAP RING,M65, Ext

1шт.

10

5186638

SYNCHRONIZER

Forward/Reverse, D=90

1шт.

11

5160664

DRIVEN GEAR

1шт.

12

5149885

ROLLER CAGE BEARING,75mm ID x 81mm OD x 30mm W

75 x 81 x 27

1шт.

13

5160665

COUPLING

1шт.

14

5160672

SHIM,51mm ID x 58.5mm OD x 2.7mm Thk

2.7mm

1шт.

14

5160673

SHIM,51mm ID x 58.5mm OD x 2.9mm Thk

2.9mm

1шт.

14

5160674

SHIM,51mm ID x 58.5mm OD x 3.1mm Thk

3.1mm

1шт.

14

5160675

SHIM,51mm ID x 58.5mm OD x 3.3mm Thk

3.3mm

1шт.

14

5162094

SHIM,51mm ID x 58.5mm OD x 3.5mm Thk

3.5mm

1шт.

14

5162095

SHIM,51mm ID x 58.5mm OD x 3.7mm Thk

3.7mm

1шт.

Выбрано товаров: 19
