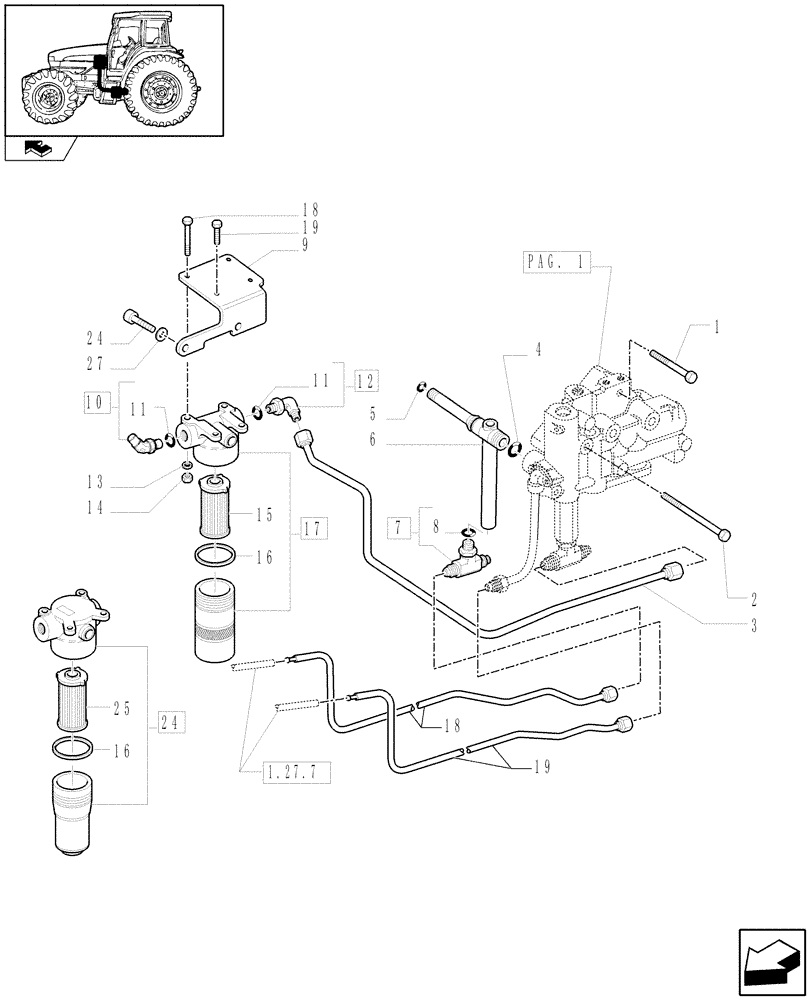

Запчасти Case IH FARMALL 95U (1.27.3/04[02]) - 20X20 POWER SHUTTLE TRANSMISSION WITH CREEPER - POWER SHUTTLE PIPES (VAR.330299-331299-332299-333299) (03) - TRANSMISSION

1

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

2

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

1шт.

3

47129807

HYD TUBE

1шт.

4

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

5

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

6

87538491

HYD CONNECTOR

1шт.

7

87616144

HYD CONNECTOR

1шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

84152169

BRACKET

1шт.

10

5167217

HYD CONNECTOR

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

12

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

13

12602474

WAVE WASHER,Wave, M8.3

4шт.

14

16100814

NUT,M8, Cl 8, DAC

4шт.

15

5194879

ELEMENT

, Serial Range: -C6558

1шт.

16

5194880

O-RING KIT

1шт.

17

47128209

FILTER ASSY

, Serial Range: -C6558

1шт.

18

47134941

TUBE

To Oil Cooler

1шт.

19

47134943

TUBE

From Oil Cooler

1шт.

20

16043814

BOLT,Hex, M8 x 1.25 x 30mm, Cl 5.8, Full Thd

M8 x 30

2шт.

21

16044414

BOLT,Hex, M8 x 1.25 x 60mm, Cl 5.8

M8 x 60

2шт.

22

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

23

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

24

84256436

HYDRAULIC OIL FILTER

, Start Serial: D6558

1шт.

25

5194879

ELEMENT

, Start Serial: D6558

1шт.
