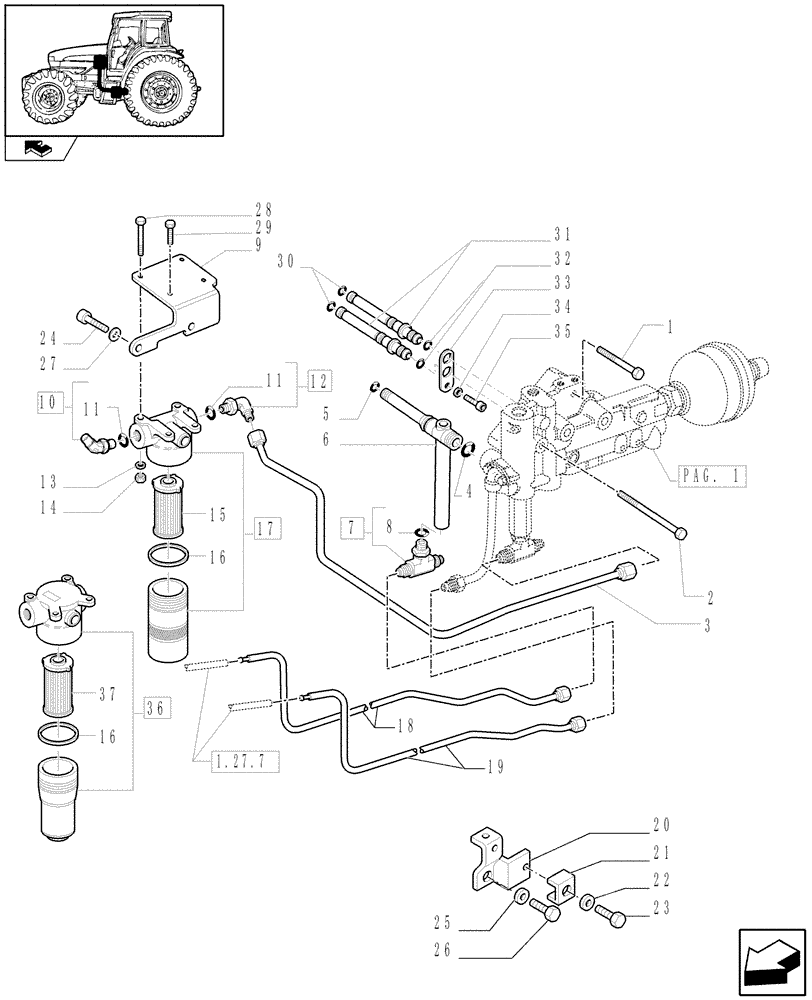

Запчасти Case IH FARMALL 95U (1.27.3/01[02]) - 24X24 HI-LO POWER SHUTTLE TRANSMISSION - POWER SHUTTLE PIPES (VAR.330279-331279-332279) (03) - TRANSMISSION

1

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

2

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

1шт.

3

47129807

HYD TUBE

1шт.

4

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

5

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

87538491

HYD CONNECTOR

1шт.

7

87616144

HYD CONNECTOR

1шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

47129268

BRACKET

, Serial Range: -C6228

1шт.

9

84152169

BRACKET

, Start Serial: D6228

1шт.

10

5167217

HYD CONNECTOR

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

12

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

13

12602474

WAVE WASHER,Wave, M8.3

4шт.

14

16100814

NUT,M8, Cl 8, DAC

4шт.

15

5194879

ELEMENT

, Serial Range: -C6558

1шт.

16

5194880

O-RING KIT

1шт.

17

47128209

FILTER ASSY

, Serial Range: -C6558

1шт.

18

47134941

TUBE

To Oil Cooler

1шт.

19

47134943

TUBE

From Oil Cooler

1шт.

20

47132747

BRACKET

1шт.

21

5170599

BRACKET

1шт.

22

12601270

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, PLN

1шт.

23

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

24

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

25

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

26

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

27

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

28

16044414

BOLT,Hex, M8 x 1.25 x 60mm, Cl 5.8

M8 x 60

2шт.

29

16043814

BOLT,Hex, M8 x 1.25 x 30mm, Cl 5.8, Full Thd

M8 x 30

2шт.

30

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

31

5182049

PIPE

2шт.

32

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

2.62 x 13.1

4шт.

33

5182050

FLANGE

1шт.

34

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

35

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

36

84256436

HYDRAULIC OIL FILTER

, Start Serial: D6558

1шт.

37

5194879

ELEMENT

, Start Serial: D6558

1шт.
