Запчасти Case IH FARMALL 95U (1.27.3[01]) - 12X12 POWER SHUTTLE TRANSMISSION - POWER SHUTTLE CONTROL VALVE (VAR.330114-331114-332114-333114) (03) - TRANSMISSION

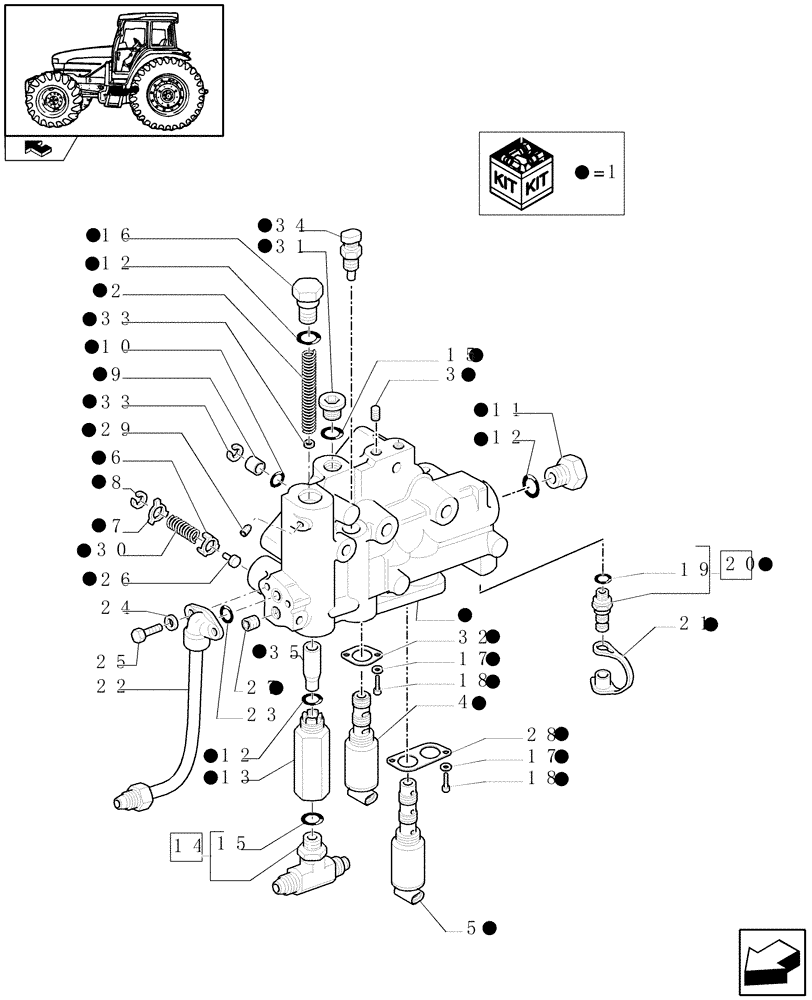

Схема запчастей Case IH FARMALL 95U - (1.27.3[01]) - 12X12 POWER SHUTTLE TRANSMISSION - POWER SHUTTLE CONTROL VALVE (VAR.330114-331114-332114-333114) (03) - TRANSMISSION
1
2
1
18
1
21
29
1
19
1
1
14
27
1
8
12
1
17
24
1
1
16
1
6
1
15
home
12
33
32
10
1
1
25
3
1
1
5
1
1
1
7
1
1
33
22
1
20
26
1
1
31
23
4
15
17
12
1
1
1
9
11
1
1
30
28
1
35
1
1
13
1
18
34
1
1
1

Артикул

Название

Примечание

Количество

1

87343462

CONTROL VALVE

ASSY

1шт.

2

5157119

SPRING,11.5mm x 127mm

1шт.

3

10269404

PLUG,M12 x 1.5

M12 x 1.5

2шт.

4

84273815

SOLENOID VALVE,12V DC, 7.3Ohm

Black Connectors

1шт.

5

87577678

SOLENOID

2шт.

6

5170395

BY-PASS VALVE

1шт.

7

5170396

DISC,6mm ID

1шт.

8

11057476

SNAP RING,M16, Int

1шт.

9

5178778

SPACER,11mm ID x 15mm OD x 15mm L

11 x 15 x 15

3шт.

10

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3шт.

11

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

13

5182008

HYD CONNECTOR

1шт.

14

5181597

TEE

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

3шт.

16

5185412

PLUG,11mm ID x 15mm OD x 15mm L

1шт.

17

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

4шт.

18

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

4шт.

19

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

20

5185423

COUPLING

Diagnostic

2шт.

21

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

2шт.

22

47134949

HYD CONNECTOR

1шт.

23

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

24

12601376

SEALING WASHER

2шт.

25

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

26

5188811

PIN,4mm OD x 8mm L

1шт.

27

10269501

PLUG,M14 x 1.5

M14 x 1.5x11

2шт.

28

87343484

BRACKET

1шт.

29

10269150

PLUG,M6 x 1 x 60mm L

M6 x 1

1шт.

30

5120761

SPRING,7.7mm OD x 20.5mm L

.

1шт.

31

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

32

5194826

BRACKET

1шт.

33

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

5 x 11

2шт.

34

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

35

47137762

VALVE,12.5mm ID x 16mm OD x 47mm Thk

1шт.

Выбрано товаров: 35
