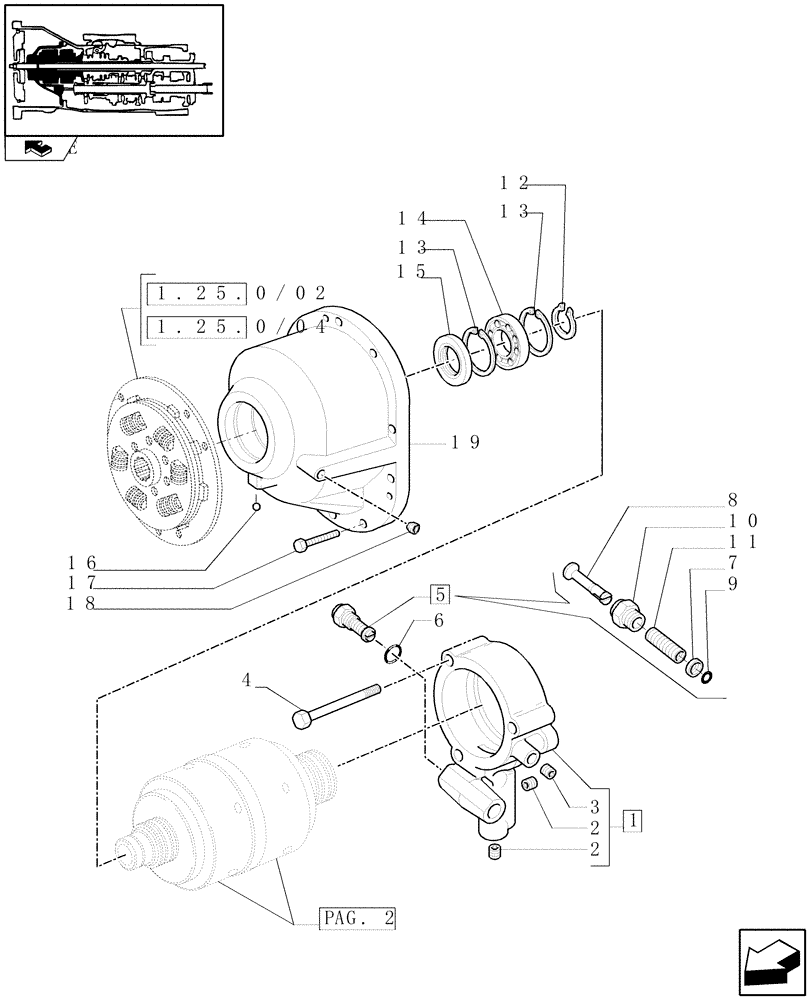

Запчасти Case IH FARMALL 95U (1.27.0[01]) - POWER SHUTTLE TRANSMISSION - POWER SHUTTLE COVER AND MANIFOLD (VAR.330114-332114-330279-332279-330299-331299-332299-333299) (03) - TRANSMISSION

1

5181853

MANIFOLD

ASSY

1шт.

2

10269501

PLUG,M14 x 1.5

M14

2шт.

3

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

M12 x 1.25

1шт.

4

16044824

SCREW,Hex, M8 x 80mm, Cl 8.8

3шт.

5

5180935

VALVE

ASSY

1шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

7

5165438

SHIM,9.1mm ID x 13.5mm OD x 2.5mm Thk

1шт.

8

5165484

VALVE

1шт.

9

5165486

CIRCLIP,9mm

1шт.

10

5165488

HYD CONNECTOR,M18 x 1.5, 9 mm L

1шт.

11

5180927

SPRING,13.1mm x 38mm

1шт.

12

11069576

SNAP RING,M55, Ext

1шт.

13

11062476

SNAP RING,M90, Int

2шт.

14

5122846

BALL BEARING,55mm ID x 90mm OD x 18mm W

55x90x18

1шт.

15

5122845

SEAL,55mm ID x 90mm OD x 10mm Thk

55x90x10

1шт.

16

20063460

BALL,7.14mm OD, Gr 100

D=7.144

1шт.

17

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

9шт.

18

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

M12 x 1.25

1шт.

19

5181855

COVER

1шт.
